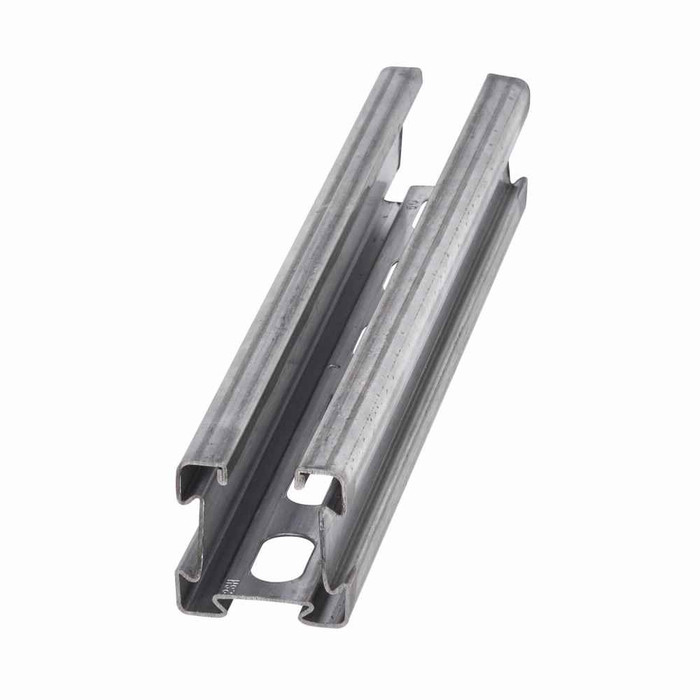

Eaton B-Line series 4Dimension strut channel
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Channel Type:
- 4D22
- Hole Pattern:
- SH
- Material Gauge:
- 18 Gauge
- Product Height:
- 2.12 IN
- Product Length Depth:
- 240 IN
- Product Weight:
- 32.06 LB
- Product Width:
- 2.12 IN
- Department:
- Electrical
- Product Finish:
- Pre-galvanized
- Product Material:
- Steel
B-LINE 4D22SH-240GLV – Frequently Asked Questions
1) Is B-Line 4D22SH strut channel slotted or solid back?
It carries the SH hole pattern, so the channel is punched rather than solid. That lets you bolt through the back of the channel into structure or joining plates anywhere along the run instead of drilling on site.
2) Can I use pre-galvanized 4D22 strut outdoors or in a wet area?
The finish here is pre-galvanized steel, which is intended for dry indoor and protected service. For exposed exterior runs, wash-down areas, parking decks, or corrosive process spaces, step up to a hot-dip galvanized or stainless channel instead. Also note that cut ends of pre-galv are raw steel and should be treated with a cold galvanizing compound.
3) Is 18 gauge strut channel heavy enough for my trapeze hangers?
18 gauge is the lighter end of the strut range. On the 4D22 channel it suits conduit racks, small pipe, cable tray drops, and light equipment support at moderate spans. For long-span trapezes carrying heavy pipe or large tray, specify a heavier gauge (12 or 14) channel or a back-to-back section, and size the span from the manufacturer load table for the actual load.
4) What exact part number do I order for 20 ft pre-galv 4D22 slotted strut?
Order Eaton B-Line part number 4D22SH-240GLV. The number reads out as 4D22 channel, SH hole pattern, 240 inch length, GLV pre-galvanized finish.
