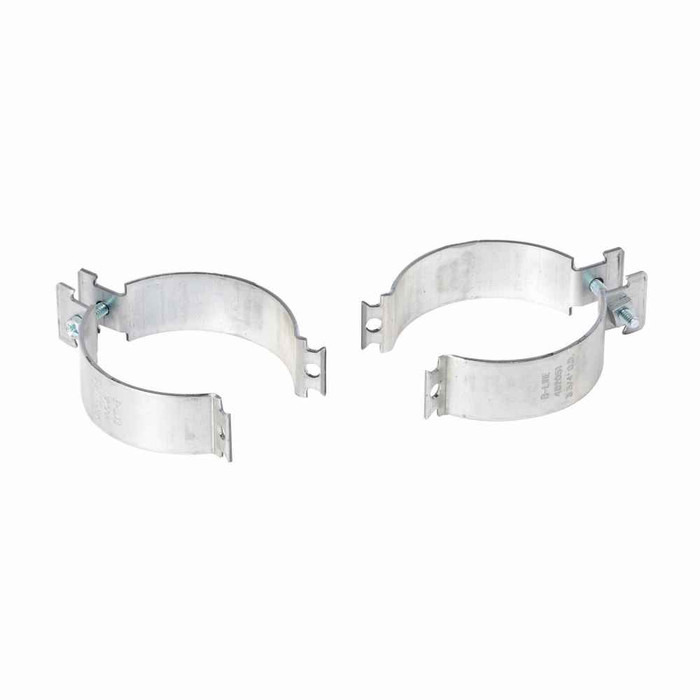

Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .105 IN
- Product Length Depth:
- 5.157 IN
- Product Weight:
- .41 LB
- Product Width:
- 1.25 IN
- Special Features:
- Preassembled Include combination recess hex screw
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Universal pipe clamp
- Product Details:
- Universal pipe clamp
- Product Material:
- Steel
B-LINE 4D2047PAHDG – Frequently Asked Questions
1) Does the B-Line 4D2047PAHDG pipe clamp come with the mounting screw, or do I need to order hardware separately?
The hardware ships with it. The 4D2047PAHDG is supplied preassembled and includes a combination recess hex screw, so the clamp and fastener come as one piece ready to set into the strut channel. Nothing extra to pick off the shelf to make the clamp itself work.
2) What is the B-Line 4D2047PAHDG actually used for on an electrical job?
It is a universal pipe clamp from Eaton's B-Line 4Dimension strut fittings line, used to secure conduit or pipe to strut channel. Electricians reach for this type when racking runs of conduit off a wall or ceiling-mounted strut rather than using individual straps into the substrate.
3) What material is the 4Dimension universal pipe clamp made from, and will it hold up outdoors?
It is steel. That is the full material statement on record for the 4D2047PAHDG, so for an exterior or wash-down run, confirm the coating on the specific finish you are buying against your corrosion spec before committing it to an outdoor rack.
4) What are the dimensions of the B-Line 4D2047PAHDG strut pipe clamp?
The recorded dimensions are 5.157 in length/depth, 1.25 in width, and .105 in height. The 1.25 in width is the figure that matters most on the job, since it governs how the clamp seats across standard strut channel and how tightly you can gang clamps side by side on a single run.
5) How do I order the exact B-Line 4Dimension clamp by part number?
Order it as Eaton B-Line part number 4D2047PAHDG. That is the single orderable model for this universal pipe clamp, so there are no size or finish options to specify alongside it.
6) Is the B-Line 4D2047PAHDG a listed or certified product for a spec-driven job?
For the 4D2047PAHDG universal pipe clamp, certifications are recorded as not applicable. If your drawing calls out a listed support assembly, verify the requirement against the channel and hanger system rather than the clamp on its own.
