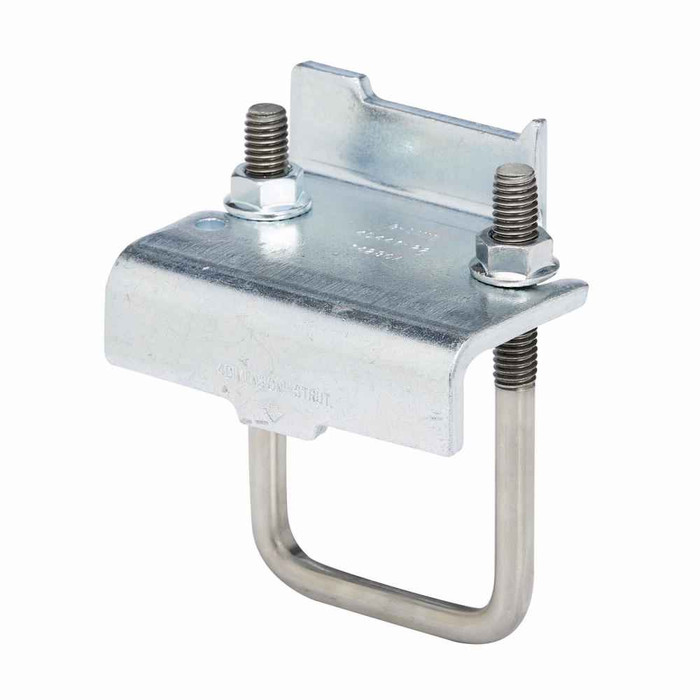

Eaton B-Line series 4Dimension strut pipe clamps and fittings
Manufacturer Resources
Product Specs
- Beam Flange Width:
- .25 IN
- Beam Thickness:
- .75 IN
- Certifications:
- cULus Listed
- Product Height:
- 4.16 IN
- Product Length Depth:
- 4.15 IN
- Product Weight:
- 1.07 LB
- Product Width:
- 1.16 IN
- Special Features:
- Includes pre-assambled hardware
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Universal beam clamp
- Product Details:
- Universal beam clamp
- Product Material:
- Steel
B-LINE 4D441-22HDG – Frequently Asked Questions
1) What beam flange thickness does the B-Line 4D441-22HDG universal beam clamp fit?
The 4D441-22HDG is set up for a beam flange width of .25 inch and a beam thickness of .75 inch. Those two numbers decide whether the clamp closes on your steel, so measure the flange at the point you intend to hang from before ordering.
2) Do I need to buy separate bolts and nuts for the B-Line 4D441-22HDG clamp?
No. The clamp ships with pre-assembled hardware, so the fastening components come attached and ready to set on the beam. You still supply whatever rod, strut, or conduit clamp connects below it.
3) Will the 22HDG version of the B-Line 4D441 beam clamp hold up outdoors or in a parking garage?
The clamp body is steel, and the HDG designation is the hot dip galvanized finish, which is the coating normally specified for exterior, wet, and unconditioned spaces such as parking structures. For dry interior work a plain or electro-galvanized clamp is usually enough.
4) What is a universal beam clamp actually used for versus a strut clamp?
A universal beam clamp like the B-Line 4D441 attaches the support system to structural steel, clamping onto the beam flange so you do not drill or weld the structure. A strut pipe clamp is the other end of the assembly, holding the conduit or pipe to the channel. Most runs need both: the beam clamp overhead, then rod or strut, then pipe clamps at the pipe.
5) How much space does the B-Line 4D441 beam clamp take up on the beam?
Plan on roughly 4.16 inches height, 4.15 inches length/depth, and 1.16 inches width. Worth checking against tight ceiling plenums or where you are spacing multiple hangers close together on the same flange.
6) How heavy is a single B-Line 4D441-22HDG clamp for estimating a bulk order?
Each clamp weighs 1.07 lb. Useful when you are pricing freight or figuring what a case of a hundred hangers adds to a ceiling load takeoff.
