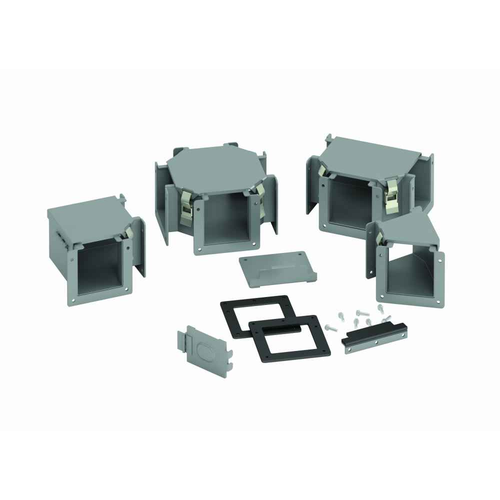

Eaton B-Line series closure plate, Closure plate, NEMA 12, Steel, ANSI 61 gray painted
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 6 in
- Product Length Depth:
- 9 in
- Product Weight:
- 3.41 lb
- Product Width:
- 13.64 in
- Special Features:
- NEMA12
- Department:
- Electrical
- Product Group:
- Panels & Plates
- Product Subgroup:
- Plates
- Product Type:
- Closure plate
- Product Details:
- Closure plate
- Product Material:
- Steel
B-LINE 126-12LCP – Frequently Asked Questions
1) Will a B-Line 126-12LCP closure plate keep a NEMA 12 wireway rated when I close off an unused opening?
That is exactly what it is for. The Eaton B-Line 126-12LCP is a NEMA 12 closure plate, so it is built to seal off an open end or unused opening on NEMA 12 (dust-tight, drip-tight) wireway and keep the enclosure's rating intact. It is UL Listed. Pair it with the gasketing and fastening the wireway system calls for, since the rating depends on the joint being closed properly.
2) Can I use a NEMA 12 closure plate on a NEMA 1 wireway, or do I need the NEMA 1 version?
A NEMA 12 plate like the 126-12LCP can close a NEMA 1 trough of the same 12 inch size without losing anything, since NEMA 12 is the tighter of the two. Going the other way does not work: a NEMA 1 closure plate on a NEMA 12 wireway breaks the dust-tight and drip-tight rating at that opening. Buy to the rating you must hold, not the one you have on the shelf.
3) What is the exact part number to order for a 12 inch B-Line NEMA 12 closure plate?
Order Eaton B-Line part number 126-12LCP. That is the steel, ANSI 61 gray, NEMA 12 closure plate for 12 inch wireway. Give that number to your distributor and there is no size or rating ambiguity to sort out.
4) Is a closure plate the same thing as a wireway end cap?
Close, but think of it by function: the 126-12LCP closes off an opening in a NEMA 12 wireway system so the run stays sealed and rated. It is a flat steel plate, not a fitting that changes direction or adds a tap. If you are trying to turn a corner, tee off, or reduce trough size, you need an elbow, tee or reducer instead, not a closure plate.
5) How heavy is the 126-12LCP plate, and can one person hang it?
It weighs 3.41 lb, light enough for a single electrician to hold in place and fasten off overhead without a second set of hands or a lift.
