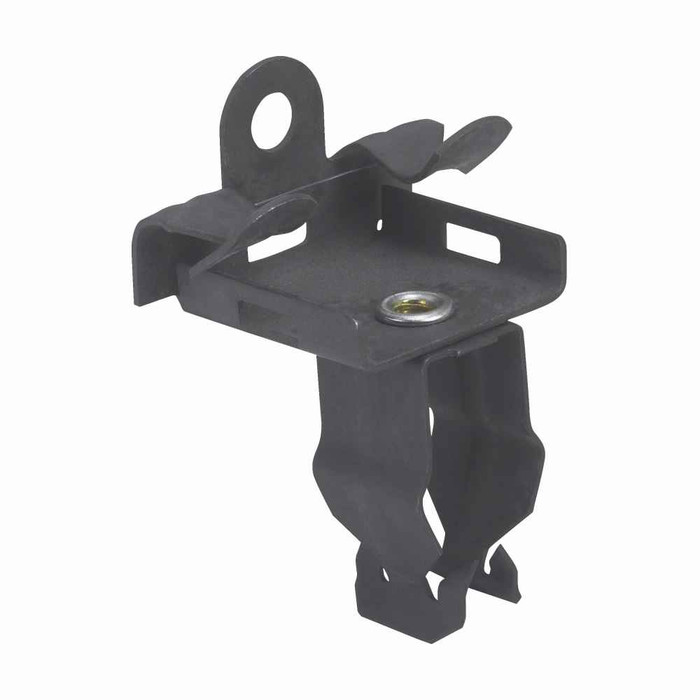

B-Line BP-8-U-2-4 Eaton series conduit support fasteners, Beams, Flange, 1" Height, 1" Length, 1" Width, 0.08lbs, 0.5" EMT, Push-type conduit to beam fasteners, .13" Min mount size, .25" Max mount size

B-Line BP-8-U-2-4 Eaton series conduit support fasteners, Beams, Flange, 1" Height, 1" Length, 1" Width, 0.08lbs, 0.5" EMT, Push-type conduit to beam fasteners, .13" Min mount size, .25" Max mount size

(No reviews yet) Write a Review

Model: BP-8-U-2-4
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$55.19
$7.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series conduit support fasteners, Beams, Flange, 1" Height, 1" Length, 1" Width, 0.08lbs, 0.5" EMT, Push-type conduit to beam fasteners, .13" Min mount size, .25" Max mount size

Manufacturer Resources

Product Specs

Application:
Quickly attaches conduit to beams
Certifications:
UL/CUL listed
Mounting Dimensions Max:
0.25
Mounting Dimensions Min:
0.13
Mounting Method:
Flange
Product Category:
Beams
Product Height:
1 in
Product Length Depth:
1 in
Product Weight:
.08 lb
Product Width:
1 in
Department:
Electrical
Product Group:
Conduit & Fittings
Product Subgroup:
Conduit Accessories
Product Type:
Push-type conduit to beam fasteners
Product Size:
0.5 inch EMT
Product Details:
Push-type conduit to beam fasteners

B-LINE BP-8-U-2-4 – Frequently Asked Questions

1) What flange thickness will this B-Line push-on beam fastener clamp onto?
It grips flange material from 0.13 inch to 0.25 inch thick. That covers light structural flanges, bar joist angles and similar steel edges. Anything thinner than 0.13 inch will not hold the spring tension, and a flange over 1/4 inch needs a heavier beam clamp instead.
2) Is the B-Line BP-8-U-2-4 beam fastener UL listed for electrical work?
Yes, it carries a UL/CUL listing, so it is acceptable for the conduit support requirements inspectors check on commercial jobs in both the US and Canada.
