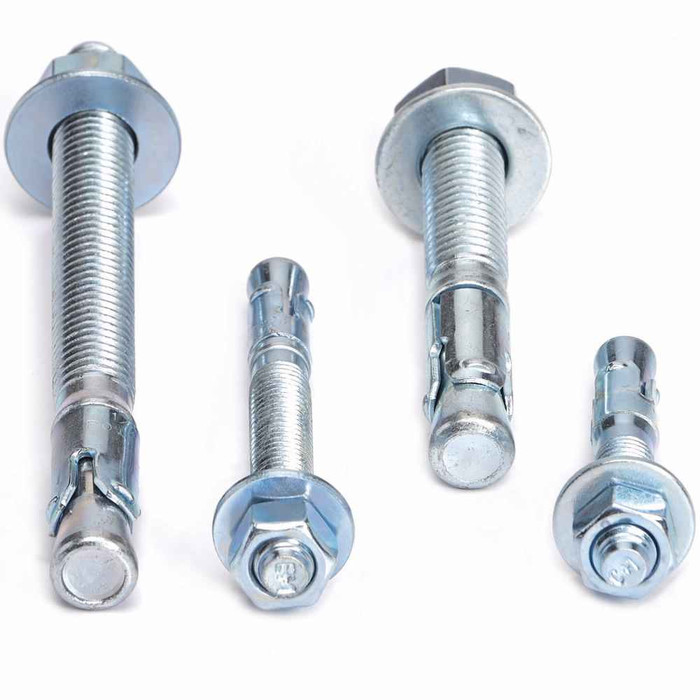

B-Line AWA-37-275SS Eaton series fastener hardware and accessories, Heavy and medium duty all purpose anchor, Stainless steel,3⁄8" x 2-3⁄4", Anchors can be installed through the fixture,Wedge anchor

B-Line AWA-37-275SS Eaton series fastener hardware and accessories, Heavy and medium duty all purpose anchor, Stainless steel,3⁄8" x 2-3⁄4", Anchors can be installed through the fixture,Wedge anchor

(No reviews yet) Write a Review

Model: AWA-37-275SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$58.07
$10.18
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series fastener hardware and accessories, Heavy and medium duty all purpose anchor, Stainless steel,3⁄8" x 2-3⁄4", Anchors can be installed through the fixture,Wedge anchor

Manufacturer Resources

Product Specs

Application:
Heavy and medium duty all purpose anchor
Certifications:
UL Listed
Product Diameter:
.375 in
Product Height:
2.25 in
Product Weight:
.096 lb
Special Features:
Anchors can be installed through the fixture
Department:
Electrical
Product Group:
Fasteners
Product Subgroup:
Anchors
Product Type:
Wedge anchor
Product Details:
Wedge anchor
Product Material:
Stainless steel

B-LINE AWA-37-275SS – Frequently Asked Questions

1) Can I drill through the strut or bracket I am mounting and set this anchor without removing the fixture?
Yes. The AWA-37-275SS is designed so it can be installed through the fixture, meaning you can drill through the mounting hole into the concrete, then drive the anchor and tighten it down without lifting the bracket, strut, or box off the wall. That saves layout time on overhead and wall-mounted electrical work.
2) Will a wedge anchor work in block or hollow CMU, or only solid concrete?
Wedge anchors like the AWA-37-275SS work by expanding a clip against a solid hole wall, so they belong in solid poured concrete. In hollow block or brick the clip has nothing continuous to bite and can spin or pull. For hollow masonry use a toggle or sleeve type anchor instead.
3) Is this anchor OK for a damp or corrosive location like a parking garage or water treatment plant?
The anchor body is stainless steel, which is the material you want where moisture, washdown, or chlorides are present and a plated carbon steel anchor would rust out at the collar. For dry interior concrete a plated carbon wedge anchor is the usual cheaper choice; specify stainless where corrosion is the deciding factor.
4) Is the B-Line AWA-37-275SS anchor UL Listed for electrical support work?
UL Listed, per the manufacturer's data for this Eaton B-Line all purpose anchor. That matters on inspected electrical jobs where the support hardware for raceway, strut, and enclosures has to carry a listing.
5) Is this anchor rated for heavy duty hanging, or just light fixtures?
Eaton B-Line classifies the AWA-37-275SS as a heavy and medium duty all purpose anchor, so it is used for strut, trapeze, and enclosure support rather than light trim work. The load you can actually apply still depends on concrete strength, embedment, and edge distance on your particular pour.
6) Can a wedge anchor be removed and reused later?
No. A wedge anchor sets permanently once the clip expands; backing the nut off does not release it. You can take the nut and the fixture off, but the anchor stays in the concrete and gets cut or ground flush. If you need a removable connection, use a threaded insert or a drop-in anchor with a bolt instead.
7) How many of these anchors are in a pound for shipping or job material takeoff?
Each AWA-37-275SS anchor weighs .096 lb, so roughly ten pieces to the pound. Useful when you are estimating box weight for a large strut installation.
