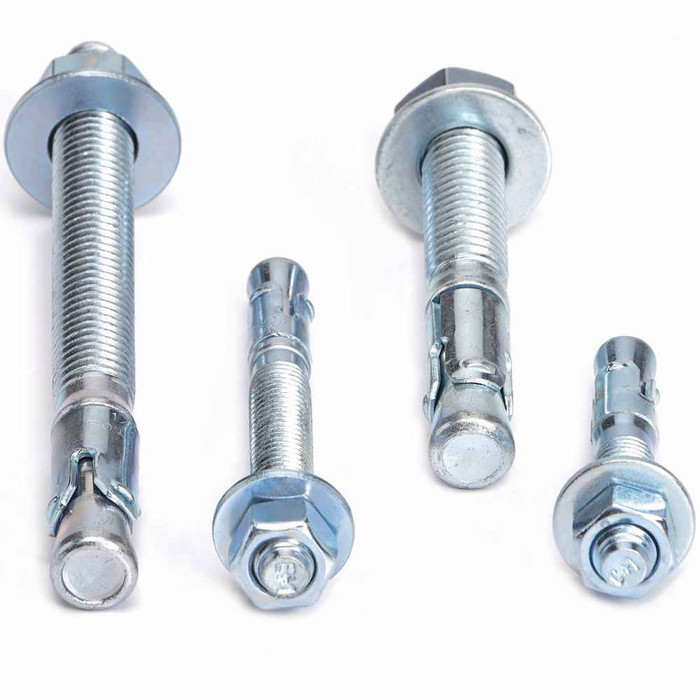

Eaton B-Line series fastener hardware and accessories, Heavy and medium duty all purpose anchor, Zinc plated carbon steel ,1⁄4" x 1-3⁄4", Anchors can be installed through the fixture,Wedge anchor
Manufacturer Resources
Product Specs
- Application:
- Heavy and medium duty all purpose anchor
- Certifications:
- UL Listed
- Product Diameter:
- .25 in
- Product Height:
- 1.75 in
- Product Weight:
- .032 lb
- Special Features:
- Anchors can be installed through the fixture
- Department:
- Electrical
- Product Group:
- Fasteners
- Product Subgroup:
- Anchors
- Product Type:
- Wedge anchor
- Product Details:
- Wedge anchor
- Product Material:
- Zinc plated carbon steel
B-LINE AWA-25-175 – Frequently Asked Questions
1) Can I set this anchor through the strut clamp or fixture, or do I have to drill first and then mount?
You can install straight through the fixture. B-Line calls that out for the AWA-25-175: the anchor can be installed through the fixture, so you drill through the mounting hole into the concrete, drive the anchor, and tighten. That saves laying out holes separately and keeps the fixture on your marks.
2) Will a zinc plated wedge anchor hold up outdoors or in a wet area?
The AWA-25-175 is zinc plated carbon steel. That plating is for dry interior and protected work, mechanical rooms, parking structures under cover, ceiling decks. For exterior exposure, washdown, or corrosive environments, specify a stainless or hot dip galvanized anchor instead.
3) Is this B-Line anchor UL Listed for electrical work?
Yes, the AWA-25-175 carries a UL Listed certification, which matters when an inspector is looking at conduit, cable tray, and equipment supports in a commercial or institutional job.
4) Wedge anchor or drop-in anchor for mounting strut to a concrete ceiling?
A wedge anchor like the AWA-25-175 is a one-piece, through-fixture anchor: you drill through the strut or clamp into the slab and drive it, and the stud stays proud with a nut on it. A drop-in requires setting the shell flush first, then threading a separate bolt, which means the fixture has to come off and go back on. Use the wedge when you want to hang and fasten in one pass; use a drop-in when you need the fastener removable and the hole flush with the surface.
5) Can this wedge anchor be removed and reused if I have to relocate the hanger?
No. A wedge anchor expands a clip permanently against the hole wall once it is torqued, so the AWA-25-175 is a one-time set. You can back the nut off and take the fixture down, but the stud stays in the concrete. Plan for a new hole if the layout moves.
