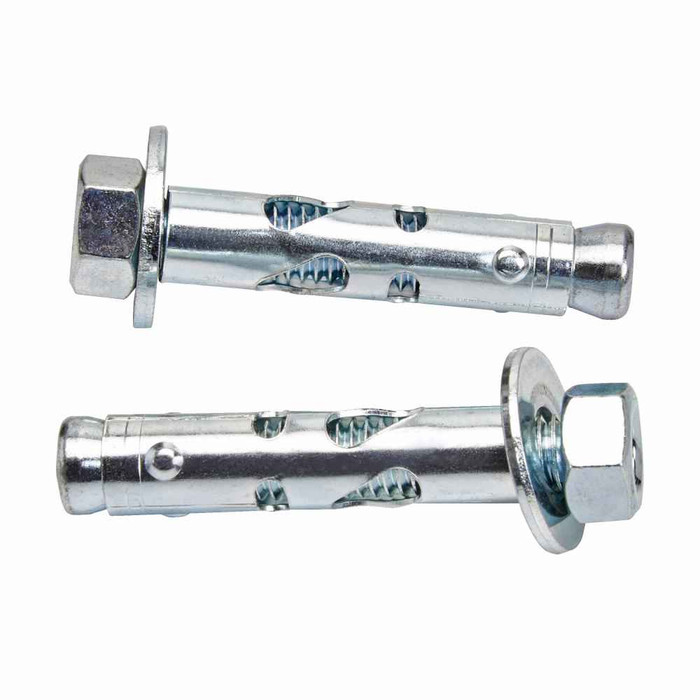

Eaton B-Line series fastener hardware and accessories, Suitable for solid and hollow core materials, Zinc plated,1/2" x 5-1/4",Sleeve type expansion anchors
Manufacturer Resources
Product Specs
- Application:
- Suitable for solid and hollow core materials
- Certifications:
- UL Listed
- Product Diameter:
- .5 in
- Product Height:
- 2.25 in
- Product Weight:
- .296 lb
- Department:
- Electrical
- Product Group:
- Fasteners
- Product Subgroup:
- Anchors
- Product Type:
- Sleeve type expansion anchors
- Product Details:
- Sleeve type expansion anchors
- Product Material:
- Zinc plated
B-LINE ASA-50-525HN – Frequently Asked Questions
1) Can I use a sleeve anchor in hollow block, or only in solid concrete?
The ASA-50-525HN is rated for both solid and hollow core materials, so hollow block and brick are within its stated application along with poured concrete. In hollow material, locate the anchor in the web or use enough embedment that the sleeve expands against the shell rather than in a void.
2) Is this B-Line anchor UL Listed for electrical support work?
UL Listed, and that is the box a lot of inspectors want ticked when anchors are carrying strut, conduit racks, or cable tray. The ASA-50-525HN is catalogued on the electrical side for exactly that kind of support hardware.
3) Will a 5-1/4 inch long anchor be too long for a thin fixture?
The 1/2 x 5-1/4 inch length is built for stacked thickness: strut channel, a bracket, plus a grout or finish layer before you reach solid base material. If you are fastening a thin plate straight to concrete, most of that length ends up buried unnecessarily and a shorter 1/2 inch sleeve anchor is the better pick. Length has to cover your fixture thickness plus the embedment.
4) Is a zinc plated sleeve anchor OK outdoors?
Zinc plating is the finish here, which is fine for dry interior and protected locations. It is a sacrificial coating, so for exterior exposure, wash-down areas, or anywhere chlorides are present, go to a stainless or hot dip galvanized anchor instead.
5) How do I order the exact 1/2 inch B-Line sleeve anchor and how much does one weigh?
Order by part number ASA-50-525HN, the Eaton B-Line 1/2 by 5-1/4 inch zinc plated sleeve anchor. Each one weighs .296 lb, which is worth knowing when you are pricing out a box for a tray run and estimating shipping weight on a few hundred pieces.
