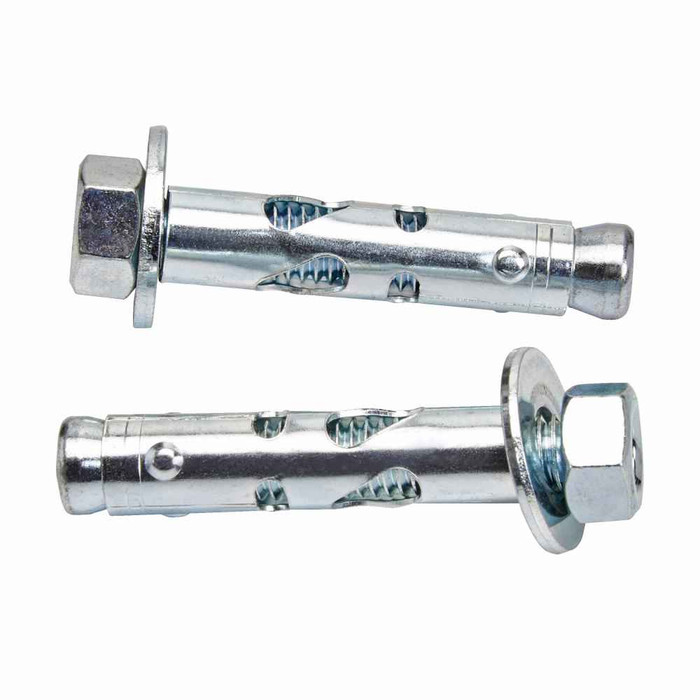

Eaton B-Line series fastener hardware and accessories, Suitable for solid and hollow core materials, Zinc plated,3/8" x 4",Sleeve type expansion anchors
Manufacturer Resources
Product Specs
- Application:
- Suitable for solid and hollow core materials
- Certifications:
- UL Listed
- Product Diameter:
- .5 in
- Product Height:
- 2.25 in
- Product Weight:
- .128 lb
- Department:
- Electrical
- Product Group:
- Fasteners
- Product Subgroup:
- Anchors
- Product Type:
- Sleeve type expansion anchors
- Product Details:
- Sleeve type expansion anchors
- Product Material:
- Zinc plated
B-LINE ASA-37-400HN – Frequently Asked Questions
1) Can I use a sleeve anchor in hollow block, or does it need solid concrete?
Both work. The ASA-37-400HN is rated for solid and hollow core materials, which is what separates a sleeve anchor from a wedge anchor. A wedge anchor needs solid concrete to expand against; the sleeve's expansion is spread over a longer section of the sleeve, so it grips in hollow block and brick as well as poured concrete. In hollow block, land the anchor in the web or fill the cell where you can.
2) What size hole do I drill for a 3/8 inch sleeve anchor?
Sleeve anchors are drilled to the nominal anchor diameter, so a 3/8 inch sleeve anchor takes a 3/8 inch carbide bit through the fixture and into the base material. That is the practical advantage over a wedge anchor for retrofit work: you can drill straight through the mounted item at the same bit size, then drive the anchor through the hole and tighten the nut.
3) Is a zinc plated sleeve anchor okay outdoors or in a wet area?
The ASA-37-400HN is zinc plated carbon steel, which is a dry interior finish. It's fine for indoor mechanical rooms, ceilings, and interior walls. For exterior, coastal, wash-down, or damp locations, specify a stainless or hot dip galvanized anchor instead.
4) Does the B-Line sleeve anchor come with a nut and washer?
Yes. The ASA-37-400HN is a nutted sleeve anchor, so the hex nut and washer ship assembled on the stud, and tightening the nut is what draws the cone into the sleeve to set it. You do not need to buy separate hardware to make the connection.
5) Can I reuse or back out a sleeve anchor after it's set?
The nut on the ASA-37-400HN can be backed off to remove or reposition the fixture, but the sleeve itself stays expanded in the hole and the anchor is not reusable in a new location. If you need the anchor to come out later, plan on cutting or driving the stud below the surface and patching.
