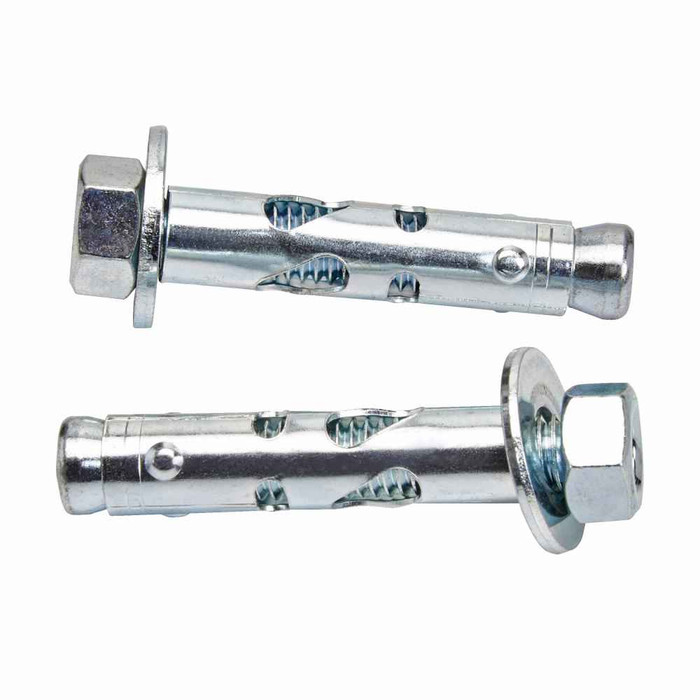

Eaton B-Line series fastener hardware and accessories, Suitable for solid and hollow core materials, Zinc plated,3/8" x 3",Sleeve type expansion anchors,300HN
Manufacturer Resources
Product Specs
- Application:
- Suitable for solid and hollow core materials
- Certifications:
- UL Listed
- Product Diameter:
- .5 in
- Product Height:
- 2.25 in
- Product Weight:
- .102 lb
- Department:
- Electrical
- Product Group:
- Fasteners
- Product Subgroup:
- Anchors
- Product Type:
- Sleeve type expansion anchors
- Product Details:
- Sleeve type expansion anchors
- Product Material:
- Zinc plated
B-LINE ASA-37-300HNR – Frequently Asked Questions
1) Can I use a sleeve anchor in hollow block, or does it need solid concrete?
Both. The ASA-37-300HNR is rated for solid and hollow core materials, which is the main reason to pick a sleeve anchor over a wedge anchor - the expanding sleeve grips against the wall of a hollow block cell instead of relying on a solid mass of concrete. For solid concrete only, a wedge anchor is the usual choice.
2) Is this B-Line anchor UL Listed for electrical support work?
The ASA-37-300HNR carries a UL Listing, which is what most electrical inspectors want to see when an anchor is carrying strut, conduit racks, or cable tray supports. It is an Eaton B-Line electrical fastener, not a general hardware-store anchor.
3) Will a zinc plated sleeve anchor hold up outdoors or in a wet area?
The plating on the ASA-37-300HNR is zinc, which is a mild corrosion coating meant for dry interior work - mechanical rooms, parking garages under cover, interior block walls. For a continuously wet, washdown, or coastal exterior location, specify a stainless anchor instead.
4) What drill bit size do I need for a 3/8 inch sleeve anchor?
A sleeve anchor is drilled with a carbide bit matching the anchor's nominal diameter, so a 3/8 inch anchor takes a 3/8 inch hammer-drill bit. Drill through the fixture where possible, blow the hole clean, then drive the ASA-37-300HNR through and tighten the nut to expand the sleeve.
5) How much material thickness can the 3/8 x 3 inch B-Line anchor fasten through?
With a 3 inch overall length, the usable grip is whatever remains after the expansion section is seated in the base material, so it suits thin fixtures like strut channel, bracket ears, or a mounting plate against block or concrete. If you are fastening through a thick standoff or a layer of insulation, step up to a longer anchor.
6) Is the nut and washer included with the ASA-37-300HNR, or do I order those separately?
A sleeve type expansion anchor is supplied as an assembly - the threaded stud, expansion sleeve, and the nut and washer that tighten it. The ASA-37-300HNR ships ready to drive, so nothing extra is needed beyond a correctly sized carbide bit.
