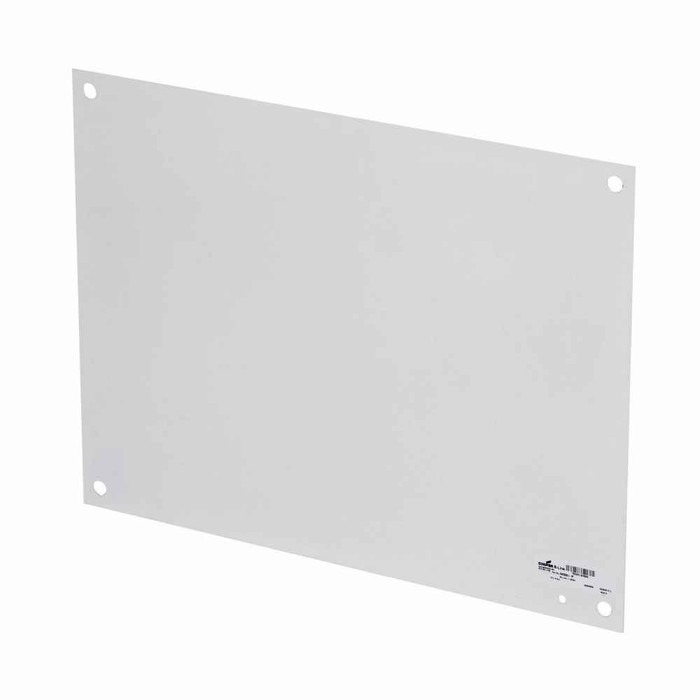

B-Line Eaton series fiberglass...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,245.86
B-Line Eaton series fiberglass accessories, 4X, Gray, Used for indoor and or outdoor use, Stainless steel, Back panel, Fiberglass accessories, Stainl

B-Line Eaton series fiberglass accessories, 4X, Gray, Used for indoor and or outdoor use, Stainless steel, Back panel, Fiberglass accessories, Stainl

(No reviews yet) Write a Review

Model: AW2424SP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,245.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series fiberglass accessories, NEMA 4X, Gray, Used for indoor and or outdoor use, Stainless steel, Back panel, Fiberglass accessories, Stainless panel, 12 gauge

Manufacturer Resources

Product Specs

Application:
Used for indoor and or outdoor use
Certifications:
NEMA
Degree Of Protection:
NEMA 4X
Finish Color:
White powder coated
Product Category:
Fiberglass accessories
Product Height:
21 in
Product Length Depth:
21 in
Product Weight:
14.613 lb
Product Width:
20.875 in
Department:
Electrical
Product Style:
Back panel
Product Material:
Stainless steel

B-LINE AW2424SP – Frequently Asked Questions

1) Can this B-Line back panel be used in an outdoor enclosure?
Yes. The AW2424SP is rated to the NEMA 4X environment and is intended for indoor or outdoor use. NEMA 4X covers hosedown, windblown dust and rain, and corrosion resistance, so the panel suits an outdoor or wet-location box. The enclosure itself has to carry the 4X rating and be sealed correctly for the installation to hold that rating.
2) Is the AW2424SP panel steel or stainless, and will it corrode in a washdown area?
It is a stainless steel panel, and it carries a white powder coated finish over the stainless. Stainless is what you want in a washdown, coastal, or chemical area where a plain painted carbon steel panel would rust at any scratch or drilled hole.
3) Does the AW2424SP come with the enclosure or is it sold separately?
This is the back panel only, an accessory for a B-Line series fiberglass enclosure. The enclosure, along with any mounting hardware kit, terminal blocks, or DIN rail, is ordered separately.
4) Why use a stainless subpanel instead of the standard painted steel one?
Two reasons drive it. First, corrosion: inside a 4X fiberglass box in a food plant, car wash, or coastal site, condensation and washdown carryover will find a painted steel panel at every drilled and tapped hole. Stainless does not. Second, the white powder coat on this panel gives you a light interior that makes wiring and labeling easier to read. If the enclosure lives in a dry indoor electrical room, a standard painted steel panel does the same structural job for less.
5) Can I drill and tap the AW2424SP to mount my own components?
Yes, that is what a subpanel is for. The AW2424SP is a flat stainless sheet you lay out, drill, and tap for DIN rail, wireways, contactors, or terminal strips before dropping it in the enclosure. Because it is stainless rather than painted carbon steel, the fresh holes will not become rust points in a wet or corrosive location.
6) What is the exact part number to specify for a 24 x 24 stainless B-Line panel?
Order Eaton B-Line model AW2424SP. That is the stainless steel back panel for the 24 x 24 fiberglass enclosure line, finished white powder coat.
