B-Line Eaton series fiberglass...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,018.80

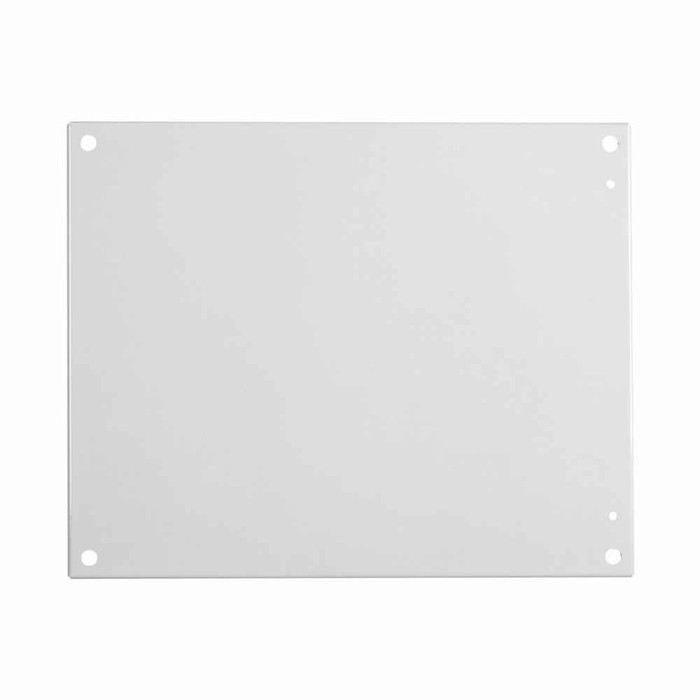

B-Line Eaton series fiberglass enclosures, 4X, Smooth brushed, Aluminum, Fiberglass enclosures, Fits 72" X 21" enclosures, Fiberglass accessories

B-Line Eaton series fiberglass enclosures, 4X, Smooth brushed, Aluminum, Fiberglass enclosures, Fits 72" X 21" enclosures, Fiberglass accessories

(No reviews yet) Write a Review

Model: AWF7221AP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,018.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series fiberglass enclosures, NEMA 4X, Smooth brushed, Aluminum, Fiberglass enclosures, Fits 72" X 21" enclosures, Fiberglass accessories

Manufacturer Resources

Product Specs

Certifications:
UL Listed
Degree Of Protection:
NEMA 4X
Finish Color:
Brushed
Product Category:
Fiberglass enclosures
Product Height:
64 in
Product Length Depth:
21.5 in
Product Weight:
13.98 lb
Product Width:
21.5 in
Special Features:
Fits 72" X 21" enclosures
Department:
Electrical
Product Group:
Panels & Plates
Product Subgroup:
Panel Accessories
Product Type:
Flat panel for fiberglass enclosures
Product Details:
Flat panel for fiberglass enclosures
Product Material:
Aluminum

B-LINE AWF7221AP – Frequently Asked Questions

1) What size enclosure does the Eaton B-Line AWF7221AP flat panel fit?
The AWF7221AP aluminum back panel is built for 72 inch by 21 inch B-Line fiberglass enclosures. The panel itself measures 64 inches high and 21.5 inches wide, which is the usable mounting area inside that enclosure size. If your box is a different height or width, this panel will not land on the mounting studs.
2) Does adding this panel affect the NEMA 4X rating of my fiberglass enclosure?
No. It is an internal back panel, listed to NEMA 4X and UL Listed, and it mounts on studs inside the box without penetrating the walls. The enclosure's hosedown and corrosion rating depends on the door gasket and any hub or fitting you add, not on the panel.
3) Why is the panel only 64 inches tall when the enclosure is 72 inches?
That is normal for back panels. The panel is sized to the interior mounting area, not the outside of the box, so the 64 inch by 21.5 inch aluminum panel leaves room at the top and bottom for the enclosure's flange, hinges, and wireway space in a 72 by 21 inch enclosure.
4) Can one person handle this panel during installation?
At 13.98 lb it is a one-person lift on weight alone, but it is 64 inches long and 21.5 inches wide, so getting it square onto the mounting studs inside a tall enclosure is easier with a second set of hands. Most installers load the panel with devices on the bench and then set the assembled panel into the box.
5) What is the finish on the AWF7221AP, and can I mount components directly to it?
Smooth brushed aluminum, unpainted. You drill and tap it or use self-tapping screws for DIN rail, terminal blocks, contactors, or subplates. Because it is bare aluminum rather than a painted surface, a mounting screw into the panel gives you a conductive path, so plan your bonding and any required isolation accordingly.
