B-Line AF6036SWP Eaton series ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,485.81

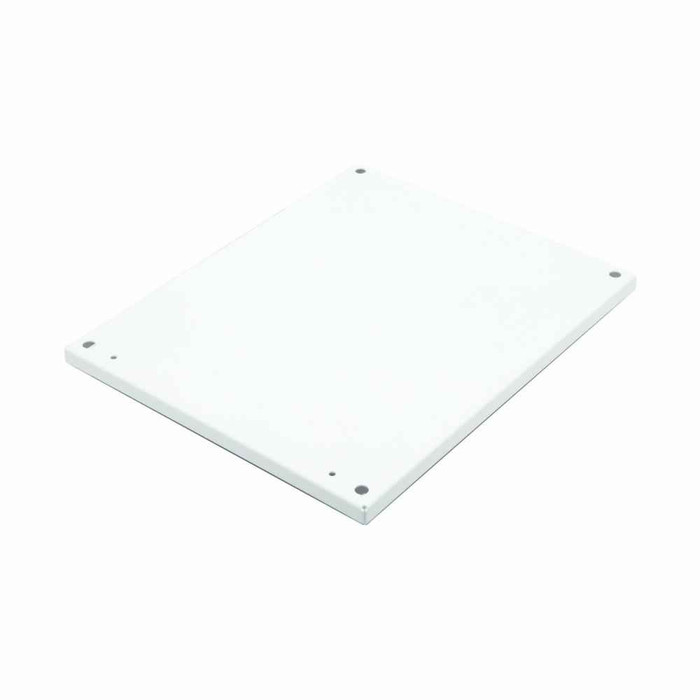

B-Line AF6036SWP Eaton series free standing enclosure accessories, NEMA 4 rated, Used to hinge panels on left or right side, Steel, Full and half swing panel, Channel mount, Free-standing enclosure accessories, Panel

B-Line AF6036SWP Eaton series free standing enclosure accessories, NEMA 4 rated, Used to hinge panels on left or right side, Steel, Full and half swing panel, Channel mount, Free-standing enclosure accessories, Panel

(No reviews yet) Write a Review

Model: AF6036SWP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,485.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series free standing enclosure accessories, NEMA 4 rated, Used to hinge panels on left or right side, Steel, Full and half swing panel, Channel mount, Free-standing enclosure accessories, Panel

Manufacturer Resources

Product Specs

Application:
Used to hinge panels on left or right side
Certifications:
CSA C22.2.
Degree Of Protection:
NEMA 4
Product Category:
Free-standing enclosure accessories
Product Height:
47.85 in
Product Length Depth:
47.85 in
Product Weight:
59.885 lb
Product Width:
30.75 in
Department:
Electrical
Product Group:
Panels & Plates
Product Subgroup:
Panel Accessories
Product Type:
Full and half swing panel
Product Details:
Full and half swing panel
Product Style:
Galvanized panel
Product Material:
Steel

B-LINE AF6036SWP – Frequently Asked Questions

1) What size swing panel is the B-Line AF6036SWP, and will it fit my enclosure?
The Eaton B-Line AF6036SWP swing panel measures 47.85 inches high by 30.75 inches wide, with a stated length/depth of 47.85 inches. It is sized for free standing enclosures, so match those panel dimensions against the interior mounting channels of your enclosure before ordering.
2) Can the AF6036SWP swing panel be hinged on the right side instead of the left?
Either side works. The AF6036SWP is made to hinge panels on the left or the right, so you pick the swing direction to suit how the enclosure door opens and where you need working clearance in the room.
3) Is the AF6036SWP suitable for a washdown or outdoor NEMA 4 enclosure?
Yes. The AF6036SWP is NEMA 4 rated and carries CSA C22.2 certification, so it suits enclosures used where hosedown, splashing water, or windblown dust are a concern.
4) How does the AF6036SWP mount inside the enclosure?
It is a channel mount panel, so it fastens to the mounting channels inside a free standing enclosure rather than directly to the back wall. That is what lets the panel swing clear for access to wiring behind it.
5) What is the AF6036SWP panel made of, and will it hold heavy components?
Steel, in a galvanized panel finish, and the panel itself weighs 59.885 lb. That is a rigid mounting surface for drives, relays, and terminal blocks, but plan for two people on the lift and make sure your enclosure channels are rated for the added load.
6) What is the difference between a full swing and a half swing panel like the AF6036SWP?
The AF6036SWP is a full and half swing panel, meaning it supports both arrangements. A full swing panel is one hinged leaf across the enclosure opening, giving a single large mounting surface that swings aside as a unit. A half swing splits the mounting into a hinged section with a fixed back panel behind it, so you can mount components on both layers and still reach the rear. Pick full swing when you want maximum single-plane mounting area, half swing when you need two levels of component density in the same enclosure.
