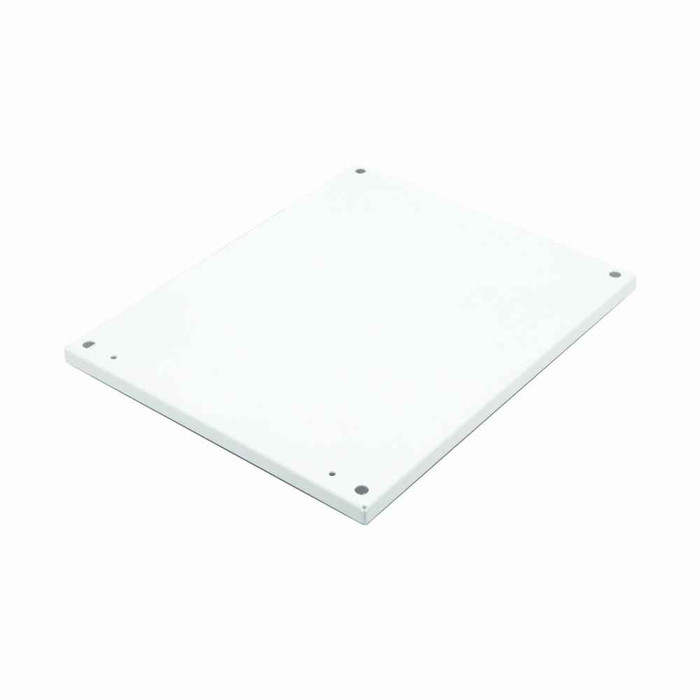

B-Line AF9072HP Eaton series f...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,999.79
B-Line AF9072HP Eaton series free standing enclosure accessories, NEMA 4X, Brushed, Used to mount panels in upper or lower sections, Steel, Full and half panel, Half panel mounting, Free-standing enclosure accessories, 12 gauge

B-Line AF9072HP Eaton series free standing enclosure accessories, NEMA 4X, Brushed, Used to mount panels in upper or lower sections, Steel, Full and half panel, Half panel mounting, Free-standing enclosure accessories, 12 gauge

(No reviews yet) Write a Review

Model: AF9072HP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,999.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series free standing enclosure accessories, NEMA 4X, Brushed, Used to mount panels in upper or lower sections, Steel, Full and half panel, Half panel mounting, Free-standing enclosure accessories, 12 gauge

Manufacturer Resources

Product Specs

Application:
Used to mount panels in upper or lower sections
Certifications:
UL Listed
Degree Of Protection:
NEMA 4X
Finish Color:
Brushed
Product Category:
Free-standing enclosure accessories
Product Height:
39.85 in
Product Length Depth:
39.85 in
Product Weight:
85 lb
Product Width:
67.87 in
Department:
Electrical
Product Group:
Panels & Plates
Product Subgroup:
Panel Accessories
Product Type:
Full and half panel
Product Details:
Full and half panel
Product Material:
Steel

B-LINE AF9072HP – Frequently Asked Questions

1) What is the B-Line AF9072HP half panel used for in a free-standing enclosure?
The AF9072HP is a steel back panel for Eaton B-Line free-standing enclosures, used to mount components in the upper or lower section of the enclosure. It is a half panel, so two of them stack to fill an enclosure where a single full panel would otherwise be used. Components bolt to the panel, and the panel mounts to the enclosure's panel-mounting provisions.
2) What size is the AF9072HP B-Line enclosure panel?
Dimensions on the AF9072HP are 67.87 x 39.85 x 39.85 inches as listed (height 39.85 in, width 67.87 in, length/depth 39.85 in). Lay out your component footprint against those figures before drilling, and note the panel weighs 85 lb, so it is a two-person lift into a standing enclosure.
3) Is the AF9072HP panel rated for washdown or corrosive NEMA 4X enclosures?
It is specified to NEMA 4X, so it is intended for use in 4X-rated free-standing enclosures, the ones used in washdown, outdoor and corrosive duty. The panel itself is UL Listed. Keep in mind the enclosure body and gasketing carry the actual environmental seal; the panel is the interior mounting surface behind it.
4) What gauge steel is the B-Line AF9072HP panel, and will it hold heavy gear?
12 gauge steel with a brushed finish. That is a heavy panel section, which is why the unit itself weighs 85 lb, and it is the usual choice for mounting transformers, drives, breakers and other weighty apparatus rather than light terminal blocks alone.
5) Should I order a half panel or a full panel for my free-standing enclosure?
Use a half panel like the AF9072HP when you want to mount gear in just the upper or lower section of the enclosure, or when you want two independent panels that can be dropped in and removed one at a time rather than wrestling a single full-height sheet. Go with a full panel when you need one continuous mounting surface top to bottom, for example a tall vertical bus run or a single large component that spans the height.
6) Is the AF9072HP a finished paint color or a bare steel panel?
The finish is brushed steel, not a painted white or gray panel. If your spec or drawing calls for a white painted back panel for visibility inside the enclosure, this is not that part.
7) What is the manufacturer part number to order this Eaton B-Line panel?
Order it as B-Line AF9072HP. That is the Eaton B-Line catalog number for the 12 gauge steel half panel used in NEMA 4X free-standing enclosures.
