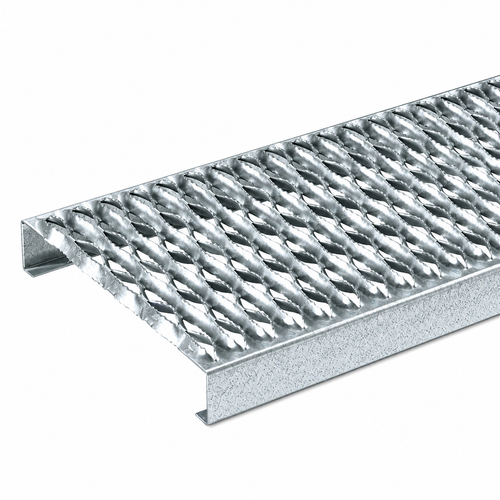

Eaton B-Line series Grip Strut eight diamond plank, 144" Grating length, 18.75" Grating width, Steel, 2.5" Channel size, Plain, Grip Strut, 10 gauge
Manufacturer Resources
Product Specs
- Application:
- Safe, sturdy footing where non-slip is required
- Channel Size:
- 2.5"
- Compliances:
- OSHA Compliant
- Material Gauge:
- 10 gauge
- Product Height:
- 2.5 in
- Product Length Depth:
- 144 in
- Product Weight:
- 20.4 lb
- Product Width:
- 18.75 in
- Department:
- Electrical
- Product Finish:
- Plain
- Product Material:
- Steel
B-LINE 82510 12 BL – Frequently Asked Questions
1) Is Grip Strut plank OSHA compliant for elevated walkways and catwalks?
The 82510 12 BL Grip Strut plank is listed as OSHA compliant, and the serrated diamond openings give the non-slip footing OSHA walking-working surface rules call for. It is the reason this product gets specified on mezzanines, crossovers and equipment platforms rather than plain flat plate.
2) Does the plain finish on this Grip Strut plank mean it will rust outdoors?
Plain is bare steel with no coating, so it is intended for indoor or dry service, or for jobs where you are painting or galvanizing after fabrication. For a wet, washdown or exterior location, specify a Grip Strut plank in a galvanized finish instead of the plain version.
3) How heavy is a 12 foot Grip Strut plank to handle on site?
20.4 lb for the full 144 inch plank. That is a one-man carry up a ladder or lift, which is the practical advantage of 10 gauge formed plank over bar grating of the same span.
4) What does the 2.5 inch channel size on Grip Strut plank actually mean for my framing?
The 2.5 inch figure is the depth of the formed side channels, which is also the overall height of the plank. Budget 2.5 inches of vertical space between your supporting steel and the finished walking surface, and set your support beams so the channel legs land on them.
5) Grip Strut plank or bar grating for a maintenance catwalk?
Plank like the eight diamond Grip Strut is one formed piece of 10 gauge steel with serrated diamond openings and integral side channels, so it drops onto supports and carries its own edge stiffness without a surround frame. Bar grating is heavier and better where you need high point loads or very long unsupported spans. For access catwalks, stair landings and equipment platforms where the priority is secure footing and light weight, the formed plank is the usual pick.
6) Does this Grip Strut plank come with clips or fasteners to attach it?
No hold-down hardware is part of the 82510 12 BL plank itself. Plan on separate grating clips, saddle clips or weld attachment to fix the channel legs to your supporting steel, and order that hardware alongside the planks so the crew is not stalled at install.
7) What is the part number to order this Eaton B-Line Grip Strut plank?
Order Eaton B-Line part 82510 12 BL. That number covers the eight diamond plank, 144 inch length, 18.75 inch width, plain steel, 10 gauge.
