B-Line Eaton series Grip Strut...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,819.54

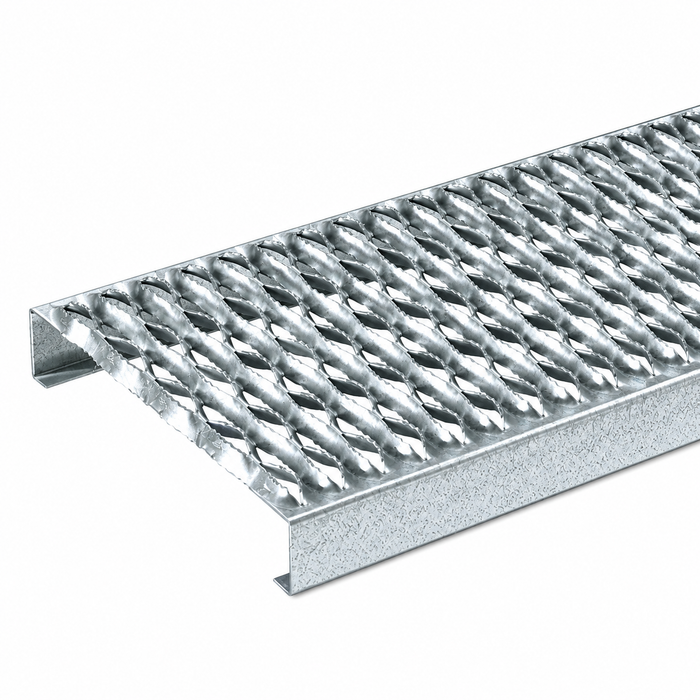

B-Line Eaton series Grip Strut eight diamond plank, 144" Grating length, 18.75" Grating width, Steel, 2.5" Channel size, Plain, Grip Strut, 12 gauge

B-Line Eaton series Grip Strut eight diamond plank, 144" Grating length, 18.75" Grating width, Steel, 2.5" Channel size, Plain, Grip Strut, 12 gauge

(No reviews yet) Write a Review

Model: 82512 12 BL
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,819.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Grip Strut eight diamond plank, 144" Grating length, 18.75" Grating width, Steel, 2.5" Channel size, Plain, Grip Strut, 12 gauge

Manufacturer Resources

Product Specs

Application:
Safe, sturdy footing where non-slip is required
Channel Size:
2.5"
Compliances:
OSHA Compliant
Material Gauge:
12 gauge
Product Height:
2.5 in
Product Length Depth:
144 in
Product Weight:
9.2 lb
Product Width:
18.75 in
Department:
Electrical
Product Finish:
Plain
Product Material:
Steel

B-LINE 82512 12 BL – Frequently Asked Questions

1) Is Grip Strut plank OSHA compliant for elevated work platforms?
The Grip Strut eight diamond plank is listed as OSHA compliant and is intended for safe, sturdy footing where a non-slip surface is required. The diamond openings punched through the surface are what shed liquid, mud and debris and give the traction underfoot.
2) Does the plain finish Grip Strut plank come galvanized, or do I need to coat it?
This one is plain steel, meaning bare uncoated material. For outdoor or wash-down service you will want to paint or otherwise coat it after fabrication, or specify a galvanized version instead. Plain is the right call for interior, dry, or already-enclosed locations, or where the plank gets a finish coat as part of the job.
3) How deep is the channel on the 82512 Grip Strut plank and how much clearance does it need?
The channel depth is 2.5 inches, which is also the overall height of the plank. Allow for that 2-1/2 inch build-up when you set your finished walking elevation against a landing, door threshold or adjacent deck.
4) What gauge steel is the B-Line eight diamond Grip Strut plank made from?
It is formed from 12 gauge steel, the heavier end of the plank range, which is why it holds a 2-1/2 inch channel section over a 12 foot span without an intermediate support at every few feet. The whole piece weighs 9.2 lb, so a two-man crew can place a full 12 foot length by hand.
5) What is the part number for the 12 gauge, 18.75 inch wide Grip Strut plank?
Order it as Eaton B-Line 82512 12 BL. That number covers the eight diamond plank in 12 gauge steel, 144 inches long, 18.75 inches wide, with a 2.5 inch channel and plain finish.
6) Can Grip Strut plank be cut to length in the field?
Yes. The plank ships as a 144 inch length and is routinely cut down on site to suit the opening or bay spacing. Cut ends on plain steel are bare, so touch them up with a coating if the location calls for it.
