B-Line Eaton series ground mou...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$37,428.96
$37,378.96
B-Line Eaton series ground mounted panel enclosure, 62" height, 10" length, 48" width, 4X, Hinged cover, 4XSFD enclosure, Ground mount, Large double

B-Line Eaton series ground mounted panel enclosure, 62" height, 10" length, 48" width, 4X, Hinged cover, 4XSFD enclosure, Ground mount, Large double

(No reviews yet) Write a Review

Model: 624810-4XSFD
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$37,428.96
$37,378.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

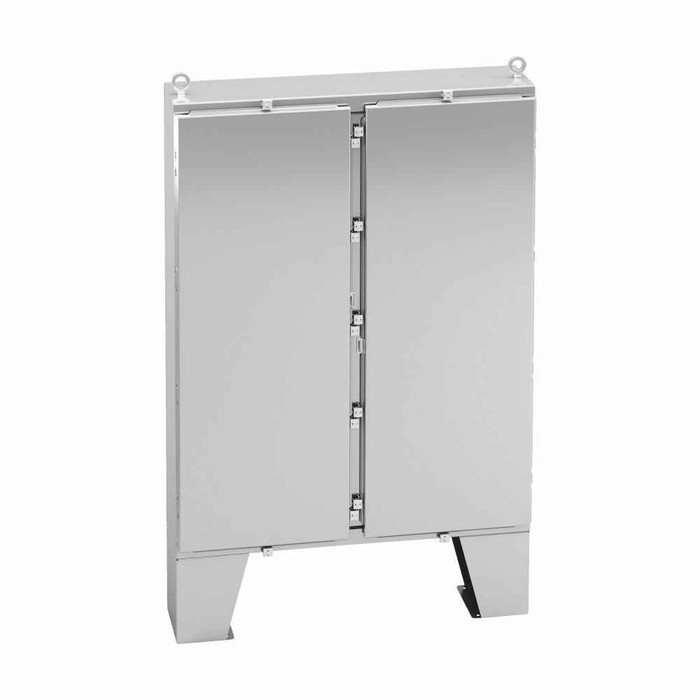

Eaton B-Line series ground mounted panel enclosure, 62" height, 10" length, 48" width, NEMA 4X, Hinged cover, 4XSFD enclosure, Ground mount, Large double door, Ground mount legs, 304 stainless steel, Seamless poured in-place gasket

Manufacturer Resources

Product Specs

Certifications:
UL 50
Closure Type:
Hinged
Country Of Origin:
United States
Cover Type:
Hinged
Finish Color:
#4 brushed
Locking Provisions:
Padlock provision
Mounting Hole Details:
Ground mount legs
Mounting Method:
Ground
Nema Rating:
4X
Product Height:
62 in
Product Length Depth:
10 in
Product Weight:
371.1 lb
Product Width:
48 in
Special Features:
Stainless door clamps
Wall Thickness:
12 gauge
Department:
Electrical
Product Model:
4XSFD enclosure
Product Color:
Grey
Product Style:
Large double door
Product Material:
304 stainless steel
Product Length:
10 in

B-LINE 624810-4XSFD – Frequently Asked Questions

1) Is the Eaton B-Line 624810-4XSFD enclosure suitable for outdoor washdown or coastal installations?
Yes. The 624810-4XSFD carries a NEMA 4X rating and is built from 304 stainless steel with a seamless poured in-place gasket, so it handles hose-directed water, windblown dust and corrosive atmospheres like washdown bays, water treatment plants and coastal sites. It is UL 50 listed.
2) What are the outside dimensions of the B-Line 624810-4XSFD panel enclosure?
It measures 62 inches high, 48 inches wide and 10 inches deep. That 10 inch depth is the number to check first: panelboards, drives and terminal blocks with deep backs will not clear it, so confirm your gear's depth plus wire bending space before committing.
3) Does this Eaton B-Line ground mount enclosure come with legs, or do I order them separately?
Ground mount legs are part of the 4XSFD ground mounted configuration, so the enclosure is set up to stand on a pad rather than hang on a wall or strut. Plan a level concrete pad and anchors sized for the unit, which weighs 371.1 lb empty before any gear goes in it.
4) Can the 624810-4XSFD enclosure be padlocked for site security?
Yes, it has a padlock provision. The doors close with stainless steel door clamps that pull the cover down onto the gasket, and the padlock hasp lets you secure it against tampering at an unattended outdoor location.
5) How heavy gauge is the steel on this B-Line stainless enclosure?
The body is 12 gauge 304 stainless steel, which is the heavier wall thickness B-Line uses on freestanding outdoor enclosures. It supports the weight of mounted gear on a 62 inch tall box without oil canning and resists knocks in industrial traffic areas.
6) Does the 624810-4XSFD come with knockouts for conduit?
No. Like other NEMA 4X stainless enclosures, it ships as a sealed box with no knockouts, because any factory opening would break the 4X rating. You cut and seal your own entries in the field using 4X rated hubs or fittings to keep the rating intact.
7) What is the finish on the B-Line 4XSFD stainless enclosure, and is it painted?
It is bare 304 stainless with a #4 brushed finish, not painted. The brushed grain is the standard architectural and food-plant finish, it cleans down easily and there is no coating to chip or chalk outdoors.
