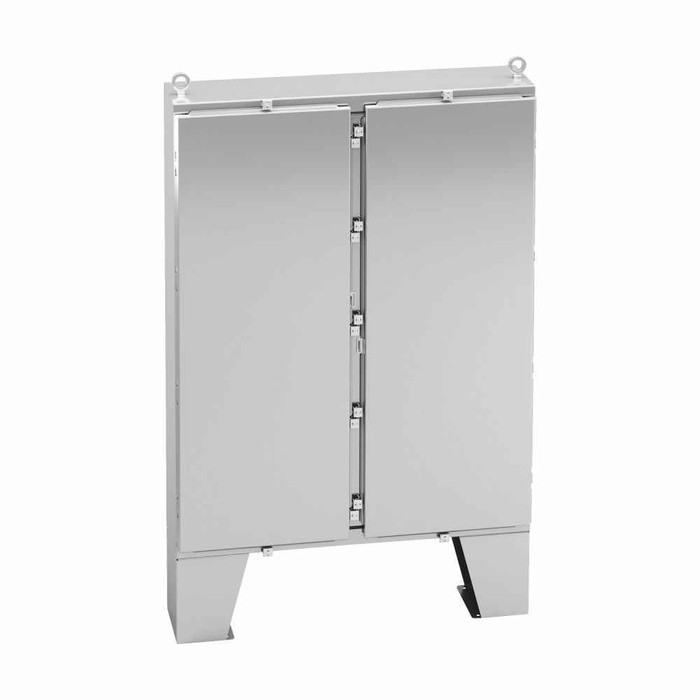

B-Line Eaton series ground mounted panel enclosure, 74" height, 12" length, 60" width, 4X, Hinged cover, 4XSFD enclosure, Ground mount, Large double

The 746012-4XSFD measures 74 inches high, 60 inches wide and 12 inches deep. That 12 inch depth is the limiting number on most jobs, so check your panel or starter depth plus wiring gutter against it before you commit. The 60 inch width is the outside enclosure dimension, not usable backpan width, so a panel that is itself 60 inches wide will not drop in.

It carries a NEMA 4X rating and the body is 304 stainless steel, which is the combination you want for hosedown, washdown and corrosive outdoor exposure. Sealing comes from a seamless poured in-place gasket with stainless door clamps pulling the doors down onto it. For chloride-heavy environments some specs call for 316 rather than 304, so confirm what your spec section requires.

Ground mount only. The 4XSFD comes with ground mount legs, so it is set on a pad or foundation rather than hung on a wall or strut. At 74 inches tall on legs the doors sit at working height, which is the point of the configuration. If you need a wall-hung box, this is the wrong version.

Yes. The 746012-4XSFD has padlock provision on the hinged double doors, so you can hang a standard shackle padlock or a lockout hasp on it. That is the securing method here, not a keyed handle or cylinder lock.

It weighs 353.9 lb empty. That is a forklift, boom truck or a rigging crew with a pallet jack and a prepared pad, not a two-man lift, and it is before any panel, gear or conductors go in. Plan the pad and the anchor points for the ground mount legs accordingly.

The body is 12 gauge 304 stainless steel. That is the heavier commercial gauge you would specify for a free-standing outdoor cabinet that gets bumped by equipment, as opposed to the 14 or 16 gauge used on smaller wall boxes.

At 60 inches wide, a single door would swing nearly five feet out into the walkway. The 4XSFD is built as a large double door cabinet, so each leaf swings roughly half that and you can still get full frontal access to the backpan in a tight aisle or against a fence line. Both leaves are hinged with stainless door clamps for the 4X seal.

The 4XSFD is built to UL 50 and is made in the US. UL 50 is the enclosure standard for electrical equipment, which is what an inspector or a spec section on a government or institutional job will be looking for alongside the 4X rating.

Order Eaton B-Line part number 746012-4XSFD. The digits carry the configuration: 74 inch height, 60 inch width, 12 inch depth, 4X stainless free-standing double door.
