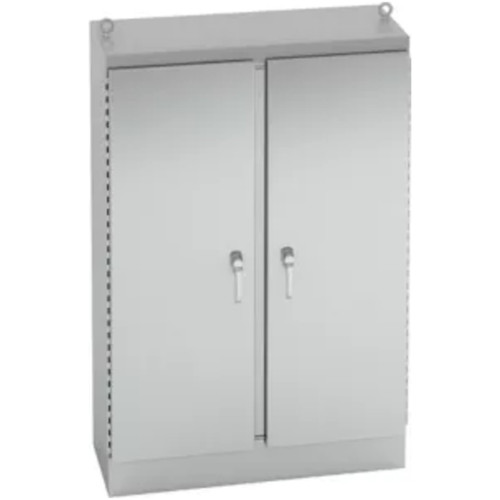

B-Line Eaton series ground mounted panel enclosure, 72" height, 36" length, 60" width, 4X, Hinged cover, 4XSFSD3PT enclosure, Ground mount, Large dou

(No reviews yet) Write a Review

Model: 726036-4XSFSD3PT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$80,518.20
$80,468.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series ground mounted panel enclosure, 72" height, 36" length, 60" width, NEMA 4X, Hinged cover, 4XSFSD3PT enclosure, Ground mount, Large double door, No mounting provisions, 304 stainless steel, Seamless poured in-place gasket

Manufacturer Resources

Product Specs

Certifications:
UL 50
Closure Type:
Hinged
Country Of Origin:
US
Cover Type:
Hinged
Finish Color:
#4 brushed
Locking Provisions:
Key lock padlock provision
Mounting Hole Details:
No mounting provisions
Mounting Method:
Ground
Nema Rating:
4X
Product Height:
72 in
Product Length Depth:
36 in
Product Weight:
707.1 lb
Product Width:
60 in
Special Features:
3-pt latching handle
Wall Thickness:
12 gauge
Department:
Electrical
Product Model:
4XSFSD3PT enclosure
Product Color:
Grey
Product Style:
Large double door
Product Material:
304 stainless steel

B-LINE 726036-4XSFSD3PT – Frequently Asked Questions

1) Will a NEMA 4X stainless enclosure like the Eaton B-Line 726036-4XSFSD3PT hold up outdoors in a washdown or coastal site?
That is what the 4X rating is for. The 726036-4XSFSD3PT is built from 304 stainless steel with a seamless poured in-place gasket, so it is rated NEMA 4X against hosedown, windblown dust and rain, and corrosion. It also carries UL 50 certification for enclosure construction. For chloride-heavy chemical exposure some specs call for 316 rather than 304, so match the material to what your drawing calls out.
2) What are the actual outside dimensions of the B-Line 726036-4XSFSD3PT enclosure?
Height is 72 inches, width 60 inches, and depth 36 inches. That is a floor-standing, two-bay size body, so plan the pad and the door swing clearance in front of it before you set it. It weighs 707.1 lb empty, which means rigging equipment, not two people and a hand truck.
3) Does this Eaton B-Line ground mount enclosure come with a back panel or mounting rails inside?
No. The 726036-4XSFSD3PT ships with no mounting provisions inside, so the sub-panel or rack for your gear is a separate line item. Budget for the panel and its hardware when you quote the job.
4) How does the door on this large double door stainless enclosure latch and lock?
Both doors are hinged, and the enclosure uses a 3-point latching handle that pulls the door tight top, center and bottom, which is what keeps the gasket seal even across a 72 inch door. The handle has a key lock with padlock provision, so you can secure it with the built-in key or hang your own padlock for site lockout.
5) Can this enclosure be wall mounted instead of set on a pad?
No. The 4XSFSD3PT is a ground mount, free-standing enclosure and there are no wall mounting provisions on it. At 707.1 lb empty it needs a concrete pad or structural base. If the install is on a wall, specify a wall mount NEMA 4X enclosure instead.
6) How heavy is the steel on this B-Line enclosure, and will it dent on a busy site?
The body is 12 gauge 304 stainless, which is a heavy commercial wall thickness for a floor-standing enclosure and stands up to bumps in plant and utility yard service far better than a light gauge painted box.
7) Do I need to drill my own conduit entries into this enclosure?
Yes. The 726036-4XSFSD3PT is supplied without knockouts or mounting holes, so all conduit entries get field-cut. On a NEMA 4X box that means every penetration has to be made with a 4X rated hub or fitting, otherwise you lose the rating the enclosure was bought for.
8) What does the finish look like on this stainless enclosure, and does it need painting?
It is supplied in a #4 brushed stainless finish, the standard satin grain, and needs no paint or coating. Aesthetically it reads grey. Bare stainless is the usual choice where a specifier wants no coating to chip or chalk in outdoor service.
9) Is this Eaton B-Line enclosure made in the USA for a Buy American spec?
Country of origin on the 4XSFSD3PT is listed as US. Confirm the specific procurement clause your job runs under, since Buy American, BABA and TAA each set different thresholds.
