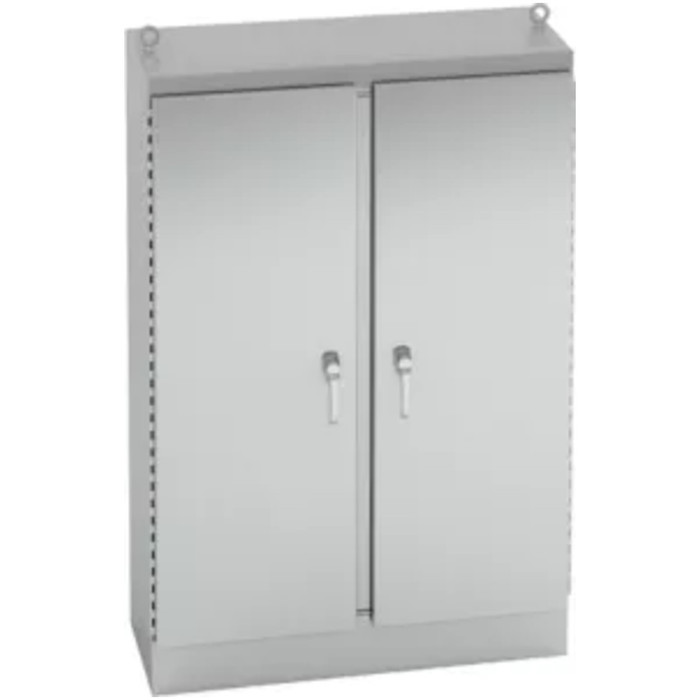

B-Line Eaton series ground mounted panel enclosure, 72" height, 24" length, 60" width, 4X, Hinged cover, 4XSFSD3PT enclosure, Ground mount, Large dou

B-Line Eaton series ground mounted panel enclosure, 72" height, 24" length, 60" width, 4X, Hinged cover, 4XSFSD3PT enclosure, Ground mount, Large dou

(No reviews yet) Write a Review

Model: 726018-4XSFSD3PT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$64,601.13
$64,551.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series ground mounted panel enclosure, 72" height, 24" length, 60" width, NEMA 4X, Hinged cover, 4XSFSD3PT enclosure, Ground mount, Large double door, No mounting provisions, 304 stainless, Seamless poured in-place gasket

Manufacturer Resources

Product Specs

Certifications:
UL 50
Closure Type:
Hinged
Country Of Origin:
United States
Cover Type:
Hinged
Finish Color:
#4 brushed
Locking Provisions:
Key lock padlock provision
Mounting Hole Details:
No mounting provisions
Mounting Method:
Ground
Nema Rating:
4X
Product Height:
72 in
Product Length Depth:
24 in
Product Weight:
537.3 lb
Product Width:
60 in
Special Features:
3-pt latching handle
Wall Thickness:
12 gauge
Department:
Electrical
Product Model:
4XSFSD3PT enclosure
Product Color:
Grey
Product Style:
Large double door
Product Material:
304 stainless steel

B-LINE 726018-4XSFSD3PT – Frequently Asked Questions

1) Is the Eaton B-Line 726018-4XSFSD3PT enclosure rated for outdoor washdown and coastal locations?
It carries a NEMA 4X rating and is built from 304 stainless steel with a seamless poured in-place gasket, so it handles hose-down, wash-down and corrosive or salt-air exposure as well as rain and windblown dust. The enclosure is UL 50 certified.
2) What are the outside dimensions of the 4XSFSD3PT free-standing enclosure, and will it fit through a standard doorway?
The box is 72 in high, 60 in wide and 24 in deep. At 60 inches wide it will not pass through a standard 36 inch door opening upright, so plan a double-door, roll-up or overhead access route into the equipment room, or set it before walls close in.
3) How much does this 72 x 60 x 24 stainless B-Line enclosure weigh, and can two people set it?
537.3 lb empty. That is a rigging job, not a two-man lift. Plan on a forklift or pallet jack to the pad and a mechanical lift to stand it, and account for the added weight of panels, breakers and wireway once it is populated.
4) Does the B-Line 726018-4XSFSD3PT come with a back panel or mounting rails for my panelboard?
No mounting provisions are included. The interior is open 12 gauge stainless with no back panel, no rails and no drilled hole pattern, so you specify and order the sub-panel or mounting channel separately and lay out your own hole pattern for the gear going in.
5) Can this enclosure be padlocked or keyed for a secured utility yard?
The doors close with a 3-point latching handle and have a key lock padlock provision, so you can either use the key lock or hang your own padlock for lockout or site security. The 3-point latch pulls the door tight top, center and bottom, which is what keeps the gasket seal even across a 72 inch tall door.
6) Is this a wall mount or floor standing electrical enclosure?
Ground mount, free-standing. It sets on a pad or floor rather than hanging off a wall, which is why no wall mounting brackets or hole provisions are supplied. The 24 inch depth gives it a stable footprint, but it still needs anchoring to the pad per your installation detail.
7) Do the doors on this B-Line enclosure swing open or lift off?
Hinged, and it is a large double door style. Two hinged leaves across a 60 inch wide opening give full-width access to the gear without lifting a heavy cover off, but you need clearance in front for both doors to swing.
8) What finish is the stainless on this enclosure, and can I cut conduit entries in it?
304 stainless in a #4 brushed finish, 12 gauge walls. Since there are no factory holes, all conduit and gland entries are field-cut. Use a hole saw or punch rated for 12 gauge stainless, and seal every penetration with a 4X rated fitting, otherwise the NEMA 4X rating of the box means nothing at that hole.
9) Is the Eaton B-Line 4XSFSD3PT enclosure made in the USA for a government or public works spec?
Country of origin is the US. The order identifier for submittals is Eaton B-Line model 726018-4XSFSD3PT, NEMA 4X, UL 50, 304 stainless.
