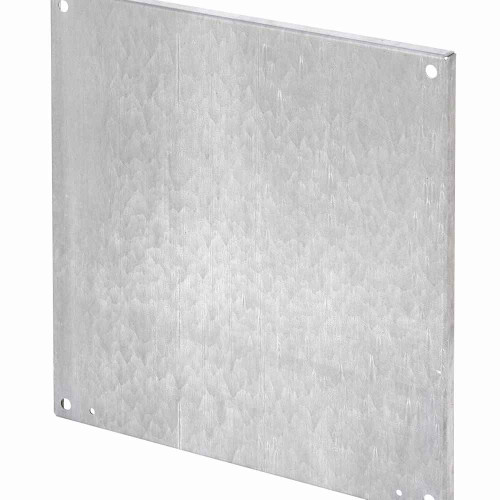

Eaton B-Line series mounting panels, White powder paint, Steel, Used with 72" X 72" enclosures, Large NEMA flanged panels
Manufacturer Resources
Product Specs
- Certifications:
- NEMA
- Finish Color:
- White powder coated
- Product Height:
- 68.87 in
- Product Length Depth:
- 32.87 in
- Product Weight:
- 182.25 lb
- Product Width:
- 32.87 in
- Special Features:
- Used with 72" X 72" enclosures
- Department:
- Electrical
- Product Group:
- Panels & Plates
- Product Subgroup:
- Panel Accessories
- Product Type:
- Back panel
- Product Details:
- Back panel
- Product Material:
- Steel
B-LINE AW7272P – Frequently Asked Questions
1) Which enclosure size does the B-Line AW7272P mounting panel fit?
The AW7272P back panel is sized for 72 x 72 inch Eaton B-Line enclosures. It is one of the large NEMA flanged panels in that series, so it drops into the enclosure interior rather than mounting to a wall on its own. If your enclosure is a different footprint, you need the panel matched to that size instead.
2) What are the actual panel dimensions of the AW7272P back panel?
The panel measures 68.87 in height, 32.87 in width, and 32.87 in for length/depth. Because it is cut undersized relative to the 72 x 72 inch enclosure opening, plan your component layout against those panel figures and not the enclosure's nominal size.
3) Is the B-Line AW7272P panel steel or aluminum, and how is it finished?
Steel, with a white powder coated finish. The white face is what you want behind wiring and components because it reflects light inside the enclosure and makes labeling and troubleshooting easier. Steel also means you can weld or tap into it for standoffs and DIN rail if your layout calls for it.
4) Does the AW7272P come with the enclosure, or is it ordered separately?
It is the back panel only. Eaton B-Line mounting panels ship separately from the enclosure, so if you are building out a new 72 x 72 box you order the enclosure, this panel, and any mounting hardware or channel your layout needs as separate line items.
5) Can I use this B-Line panel as a replacement subpanel in an existing 72 x 72 electrical enclosure?
Yes, that is the common use. The AW7272P is the flanged mounting panel for 72 x 72 inch B-Line enclosures, so it replaces a damaged or previously drilled subpanel in the same box. Transfer your component layout by matching hole patterns from the old panel before you pull it.
6) What does the flanged design on this B-Line mounting panel do?
The flange is a formed edge running around the panel. It stiffens a large sheet so a 68.87 inch tall panel does not oil-can or sag once it is loaded with breakers, drives, and terminal blocks, and it sets the panel off the back wall of the enclosure to leave room for wire runs behind components.
7) Is this B-Line back panel NEMA rated?
NEMA is the certification listed for this panel, and it is described as a large NEMA flanged panel. Keep in mind the enclosure itself is what carries the environmental type rating for the opening, so match the panel to a NEMA enclosure of the correct type for your location.
