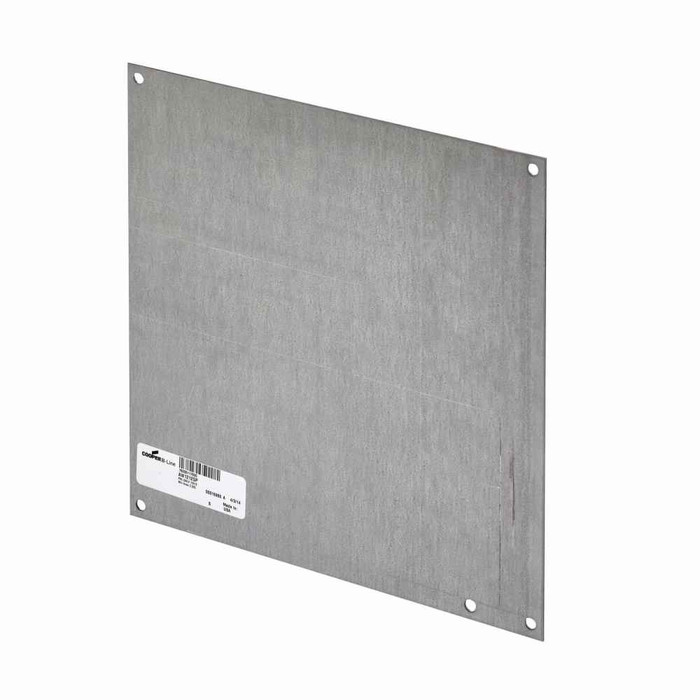

Eaton B-Line series panels and panel accessories, NEMA 12, White powder coated, JIC panels can be installed in all JIC Enclosures, Galvanized steel, JIC and small panels, Panels and panel accessories
Manufacturer Resources
Product Specs
- Application:
- JIC panels can be installed in all JIC Enclosures
- Certifications:
- UL Listed
- Degree Of Protection:
- NEMA 12
- Product Category:
- Panels & panel accessories
- Product Height:
- 8.87 in
- Product Length Depth:
- 8.875 in
- Product Weight:
- 1.495 lb
- Product Width:
- 10 in
- Department:
- Electrical
- Product Type:
- Top assembly
- Product Details:
- Top assembly
- Product Style:
- JIC and small panels
- Product Material:
- Galvanized steel
- Product Length:
- 8.875 in
B-LINE AW1010P – Frequently Asked Questions
1) Will the B-Line AW1010P panel fit my JIC enclosure?
The AW1010P is a JIC-style back panel sized to mount in all JIC enclosures, per Eaton's own application note for the B-Line series panels. It measures 10 in wide by 8.87 in high, with a length/depth figure of 8.875 in, so match those against the interior mounting studs of your enclosure before ordering. If your box is a standard NEMA 4 or 4X wallmount rather than a JIC cabinet, you want the panel sized for that enclosure family instead.
2) Is the AW1010P rated for a NEMA 12 industrial control cabinet?
NEMA 12 is the degree of protection carried on this B-Line panel, which is the dust-tight and drip-tight rating used for indoor industrial control panels. It is also UL Listed. For washdown or outdoor locations you are into NEMA 4X territory and this is not the part.
3) What is the B-Line AW1010P made of and will it hold up in a plant environment?
Galvanized steel with a white powder coat finish. The galvanizing handles the humidity and the light color makes it far easier to trace wiring and read component labels inside a dark cabinet. At 1.495 lb it is a one-hand install.
4) Is the AW1010P the back panel itself or the mounting hardware?
It is a top assembly in Eaton's B-Line panels and panel accessories line, cataloged under JIC and small panels. That means you are buying the panel assembly, not loose brackets or a full enclosure. The enclosure and any DIN rail or component hardware you plan to mount to it are ordered separately.
5) What is the exact part number to order this B-Line JIC panel?
Order Eaton B-Line model AW1010P. That is the manufacturer part number, and the 1010 in the designation tracks the 10 in width and roughly 8.87 in height of the panel.
