B-Line Eaton series premier series accessories, 4, White polyester powder coated, Swing-out panels, 14 gauge

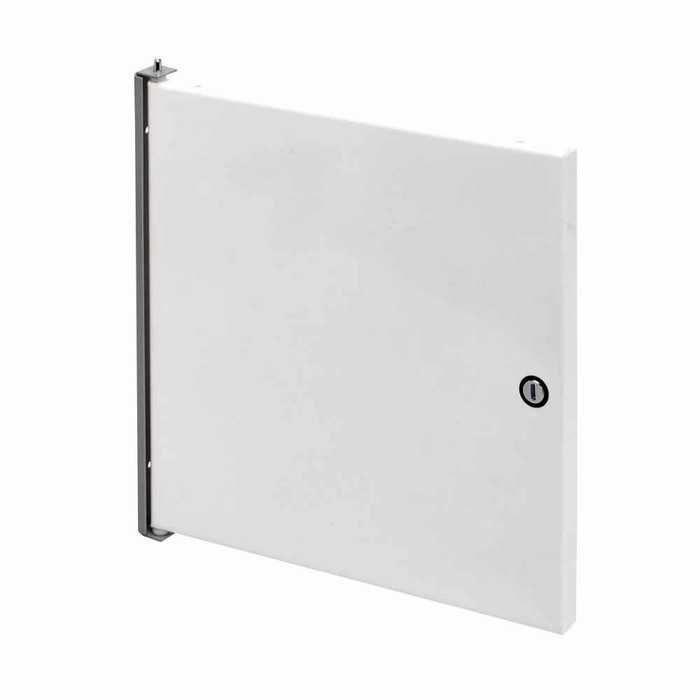

The 3624SP is sized for a 36 x 24 enclosure in the Eaton B-Line Premier series, which is what the model number designates. The panel itself measures 33.78 in height, 21.84 in width, and 23.22 in length/depth. Match those numbers against your enclosure's interior before ordering, because a swing-out panel has to clear the door flange and the door-mounted components when it rotates.

The panel is a NEMA 4 rated Premier series accessory and is UL Listed. NEMA 4 covers hosedown and windblown rain environments, so it suits food processing, washdown areas, and outdoor industrial installs when used with a matching NEMA 4 Premier series enclosure. The rating applies to the enclosure system, not to a bare panel on its own.

14 gauge steel with a white polyester powder coated finish. The white face is standard in control enclosures because it reflects light and makes device labeling easier to read during service. Fourteen gauge is heavy enough to carry contactors, drives, and transformers without the panel flexing on its hinge.

A back panel is the simpler choice when everything fits on one plane and you only need front access. Go to a swing-out panel like the 3624SP when you are out of mounting real estate or you need to reach wiring behind mounted devices. The tradeoff is depth: the panel needs room to rotate clear of the door and door-mounted devices, so a shallow enclosure may not accept one.

Order it as Eaton B-Line model 3624SP, a Premier series white powder coated 14 gauge swing-out panel. That single model number covers the item; there are no finish or size options to specify on it.

18.501 lb bare. Add the weight of everything you mount on it when you size the hinge support and plan the lift, since a loaded swing-out panel hangs off one side of the enclosure and puts all of that on the hinge line. For a one-person install, mount the panel empty first and then populate it.
