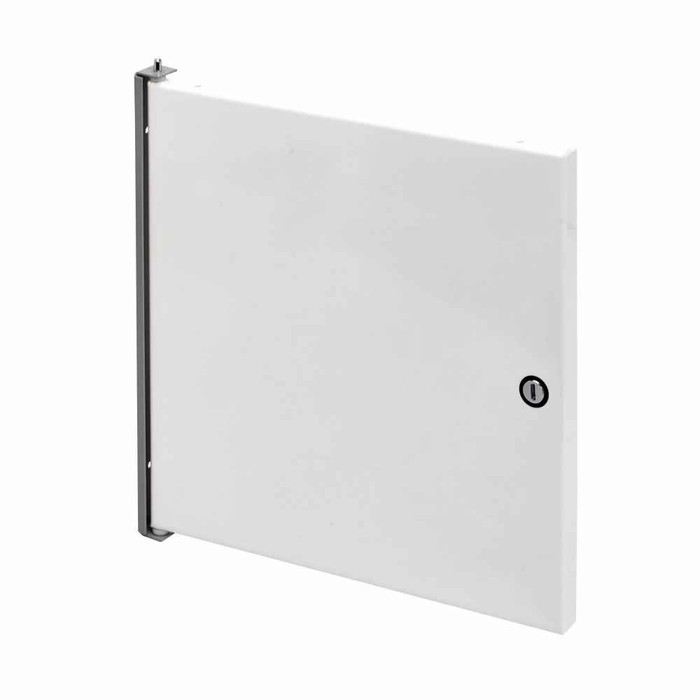

Eaton B-Line series premier series accessories, NEMA 4, White polyester powder coated, Swing-out panels, Premier series accessories, Swing-out panel, 14 gauge material thickness
Manufacturer Resources
Product Specs
- Application:
- Swing-out panels help with component mounting
- Certifications:
- UL Listed
- Degree Of Protection:
- NEMA 4
- Finish Color:
- White powder coated
- Product Category:
- Premier series accessories
- Product Height:
- 27.78 in
- Product Length Depth:
- 19.22 in
- Product Weight:
- 13.07 lb
- Product Width:
- 17.84 in
- Department:
- Electrical
- Product Group:
- Panels & Plates
- Product Subgroup:
- Panel Accessories
- Product Type:
- Swing-out panels
- Product Details:
- Swing-out panels
- Product Style:
- Kit includes all hardware for bracket assembly
B-LINE 3020SP – Frequently Asked Questions
1) Can I use a swing-out panel in a NEMA 4 washdown enclosure without breaking the rating?
Yes. The 3020SP swing-out panel is rated for NEMA 4 Premier series enclosures and is UL Listed, so it mounts inside the enclosure and does not penetrate the shell or compromise the hose-down rating.
2) Do I need to buy separate brackets to mount this swing-out panel?
No extra bracket order is needed. The 3020SP ships as a kit with all hardware for bracket assembly, so the panel and its mounting hardware come together.
3) Why choose a swing-out panel instead of a fixed back panel in an electrical enclosure?
A fixed back panel gives you one mounting plane; the 3020SP swing-out panel hinges out so you can mount components on it and still reach wiring and devices behind it. That is the point of the accessory: it adds usable component mounting area and service access in the same enclosure. If you only need a single flat mounting surface and never need to get behind it, a standard back panel is the simpler choice.
4) Is 14 gauge steel stiff enough to hang contactors and drives on a swing-out panel?
The 3020SP is built from 14 gauge material, which is the heavier end of enclosure sheet steel and is what lets a hinged panel carry mounted components without sagging. Panel weight is 13.07 lb on its own, so account for that plus your component load when you check the enclosure hinge side.
5) Will the white finish on the 3020SP match a painted enclosure interior?
The panel is finished in white polyester powder coat, the same white interior finish used on Eaton B-Line Premier series enclosures, so it blends with a standard white-painted back panel and interior rather than showing bare or grey steel.
6) What is the exact part number to order this Eaton B-Line swing-out panel?
Order Eaton B-Line model 3020SP. That single catalog number covers the white powder coated 14 gauge swing-out panel with the bracket hardware kit.
