B-Line B22SHA-120SS6 Eaton ser...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$964.43

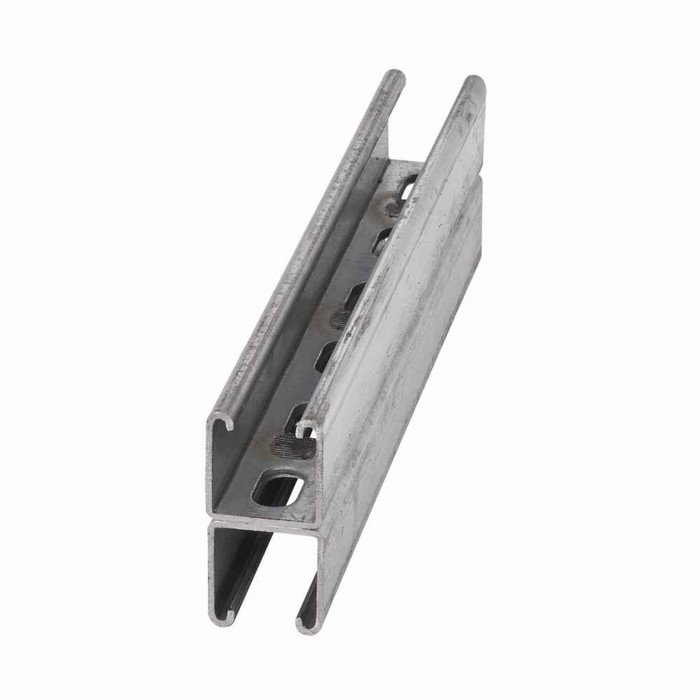

B-Line B22SHA-120SS6 Eaton series strut back-to-back welded channel, 1.62" channel height, 120" channel length, 1.62" channel width, Steel, 12 Gauge, SHA hole pattern, B22 channel type, Stainless steel type 316

B-Line B22SHA-120SS6 Eaton series strut back-to-back welded channel, 1.62" channel height, 120" channel length, 1.62" channel width, Steel, 12 Gauge, SHA hole pattern, B22 channel type, Stainless steel type 316

(No reviews yet) Write a Review

Model: B22SHA-120SS6
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$964.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut back-to-back welded channel, 1.62" channel height, 120" channel length, 1.62" channel width, Steel, 12 Gauge, SHA hole pattern, B22 channel type, Stainless steel type 316

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Channel Type:
B22
Hole Pattern:
SHA
Material Gauge:
12 Gauge
Product Height:
1.62 in
Product Length Depth:
120 in
Product Weight:
36.4 lb
Product Width:
1.62 in
Department:
Electrical
Product Finish:
Stainless steel type 316
Product Material:
Steel
Product Length:
120 in

B-LINE B22SHA-120SS6 – Frequently Asked Questions

1) Is this B-Line strut suitable for coastal, wastewater, or chemical exposure?
Yes. The B22SHA-120SS6 is type 316 stainless, which is the grade specified for salt air, wastewater plants, and chemical washdown areas where type 304 or plain galvanized strut pits. If your job is dry indoor electrical support, 316 is more corrosion protection than you need.
2) Will standard strut nuts and fittings fit this B-Line B22 channel?
The B22 profile takes the same 1-5/8 inch series strut nuts, clamps, and fittings used across the line, since the channel opening is the standard 1-5/8 inch width. Match the hardware metal to the channel: with 316 stainless strut, use stainless nuts and bolts, or you will get galvanic corrosion at every connection and defeat the reason you bought 316.
3) What is the difference between B22 back-to-back strut and standard single B22 channel?
The B22SHA-120SS6 is a back-to-back welded channel: two B22 profiles welded spine to spine, giving a closed box section 1.62 inches by 1.62 inches with slots facing opposite directions. That lets you hang or brace from both faces, and it carries load with less deflection over a long span than a single open channel. If you only need one mounting face, a single B22 strut is the lighter and cheaper pick.
4) What does the SHA hole pattern on B-Line B22 strut mean for mounting?
SHA is a slotted hole pattern punched through the channel back, so you get continuous adjustment along the run instead of fixed hole centers. On the B22SHA-120SS6 that pattern is on the welded backs, which means the through-fastening points run the length of the 120 inch stick and you set your anchor spacing where the structure allows it rather than where a hole lands.
5) Can this strut be cut to length in the field?
Yes, the 120 inch stick is meant to be cut to suit. Cut 316 stainless with an abrasive or carbide blade rated for stainless, not a blade that has been used on carbon steel, and deburr the cut. Any bare cut end on stainless will re-passivate, but keep carbon steel filings off the surface or you will see rust bloom that is not the strut itself.
6) What part number do I order for the 10 foot 316 stainless B22 SHA strut?
Order B-Line B22SHA-120SS6. The number reads out as B22 channel, SHA slot pattern, 120 inch length, SS6 for type 316 stainless. That is the single configuration, so there is no separate finish or length option to specify.
