B-Line Eaton series strut chan...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$17,876.70

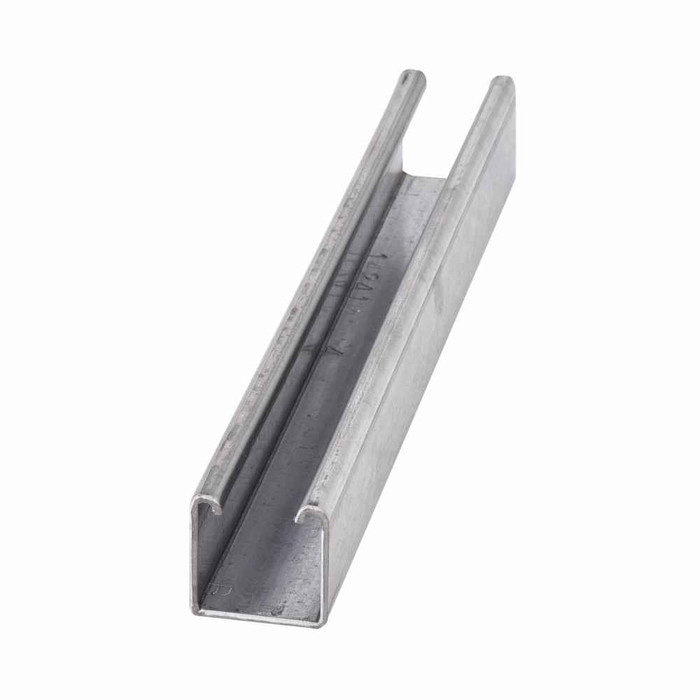

B-Line Eaton series strut channel, 1.62" channel height, 120" channel length, 1.62" channel width, 12 Gauge steel, B22 channel type, Stainless steel t

B-Line Eaton series strut channel, 1.62" channel height, 120" channel length, 1.62" channel width, 12 Gauge steel, B22 channel type, Stainless steel t

(No reviews yet) Write a Review

Model: B22-120SS4
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$17,876.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut channel, 1.62" channel height, 120" channel length, 1.62" channel width, 12 Gauge steel, B22 channel type, Stainless steel type 304

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Channel Type:
B22
Material Gauge:
12 Gauge
Product Height:
1.62 in
Product Length Depth:
120 in
Product Weight:
19.1 lb
Product Width:
1.62 in
Department:
Electrical
Product Finish:
Stainless steel type 304
Product Material:
Steel

B-LINE B22-120SS4 – Frequently Asked Questions

1) Can this strut channel be used outdoors or in a wash-down area?
It is made in Type 304 stainless steel, which is the grade specified for exterior runs, damp mechanical rooms, food processing, and wash-down environments where pre-galvanized or painted strut would rust at the cut ends. For chloride-heavy service such as coastal or pool chemical exposure, Type 316 is the usual step up.
2) Do I need to order strut nuts and fittings separately for this B-Line channel?
Yes. The B22-120SS4 is supplied as bare channel only, so spring nuts, brackets, beam clamps, post bases, and threaded rod all get ordered on top of it. In a 304 stainless installation, match the hardware to the channel, mixing plain steel nuts into stainless strut gives you galvanic and rust problems at every connection point.
3) Is B22 a single channel or back-to-back, and how thick is the steel?
B22 is the deeper 1-5/8 by 1-5/8 single channel, formed from 12 gauge steel. The taller cross section carries more load than the shallow 13/16 in strut, which is why it shows up on trapeze hangers and longer unsupported spans rather than short wall-mounted runs.
4) What is the exact part number for B-Line 10 ft stainless B22 strut?
Order it as Eaton B-Line B22-120SS4. The suffix breaks down as B22 channel profile, 120 in length, SS4 for Type 304 stainless. If a drawing calls for plain B22 without the SS4, that is the pre-galvanized or painted version, not this one.
5) How much does a 10 foot stick of B22 stainless strut weigh?
Each 120 in length weighs 19.1 lb. That is a one-man carry but worth counting when you are ordering a bundle for an upper floor or calculating the dead load of a long trapeze run.
