B-Line B22S-240HDG Eaton serie...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$90.08
$54.01

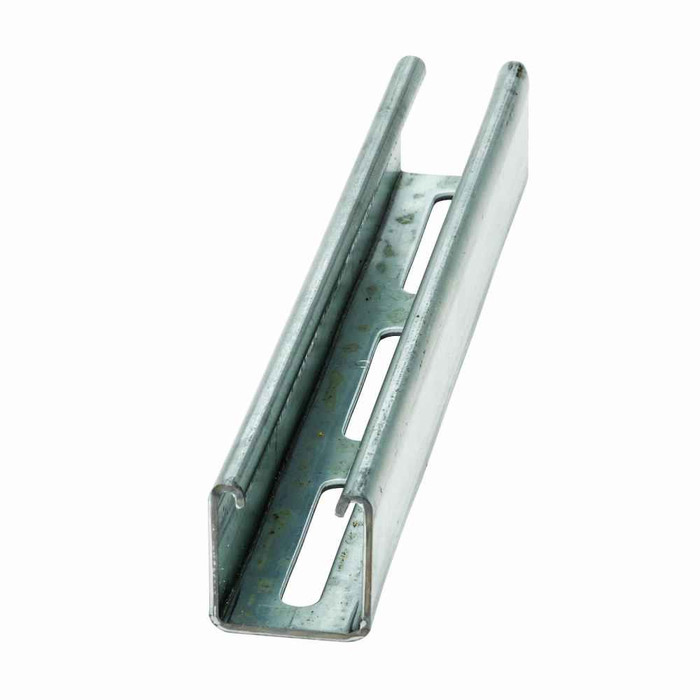

B-Line B22S-240HDG Eaton series strut channel, 1.62" channel height, 240" channel length, 1.62" channel width, Steel, 12 Gauge, S hole pattern, B22 channel type, Hot-dipped galvanized

B-Line B22S-240HDG Eaton series strut channel, 1.62" channel height, 240" channel length, 1.62" channel width, Steel, 12 Gauge, S hole pattern, B22 channel type, Hot-dipped galvanized

(No reviews yet) Write a Review

Model: B22S-240HDG
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$90.08
$54.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut channel, 1.62" channel height, 240" channel length, 1.62" channel width, Steel, 12 Gauge, S hole pattern, B22 channel type, Hot-dipped galvanized

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Channel Type:
B22
Hole Pattern:
S
Material Gauge:
12 Gauge
Product Height:
1.62 in
Product Length Depth:
240 in
Product Weight:
47.2 lb
Product Width:
1.62 in
Department:
Electrical
Product Finish:
Hot-dipped galvanized
Product Material:
Steel
Product Length:
240 in

B-LINE B22S-240HDG – Frequently Asked Questions

1) Is the B-Line B22S strut channel solid or slotted?
The B22S carries the S hole pattern, which is the slotted run of holes along the back of the channel. That lets you bolt into the channel from behind at regular intervals rather than drilling on site. If you want a fully solid back for continuous support runs, you need the plain B22 without the S designation.
2) Can B-Line B22S hot-dipped galvanized strut be used outdoors or in a wet environment?
Hot-dipped galvanizing is the heavier zinc coating, applied after fabrication, and it's what you specify for exterior rooftop runs, parking structures, tunnels, wash-down areas, and unconditioned mechanical spaces. Pre-galvanized (electro-plated) strut is the indoor, dry-location product. Cut ends will be bare steel, so field cuts should get a cold galvanizing compound.
3) What part number do I order for B-Line 20 foot slotted hot-dip strut?
The manufacturer part number is B22S-240HDG. Read it as B22 profile, S slotted back, 240 inch length, HDG for hot-dipped galvanized. Nuts, fittings, and end caps are separate line items; nothing but the channel comes in the stick.
4) Can I cut B22S strut channel to length on site?
Yes, 12 gauge steel channel cuts with a bandsaw, chop saw with a metal blade, or portable band saw. The slotted S pattern runs the full length so you keep bolt access wherever you cut. Treat the raw cut edge with a zinc-rich touch-up if the run is exterior, since the hot-dip coating stops at the cut.
How fast can I get the B-LINE B22S-240HDG delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the B-LINE B22S-240HDG come with a warranty?
Absolutely. The B-LINE B22S-240HDG is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the B-LINE B22S-240HDG?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
