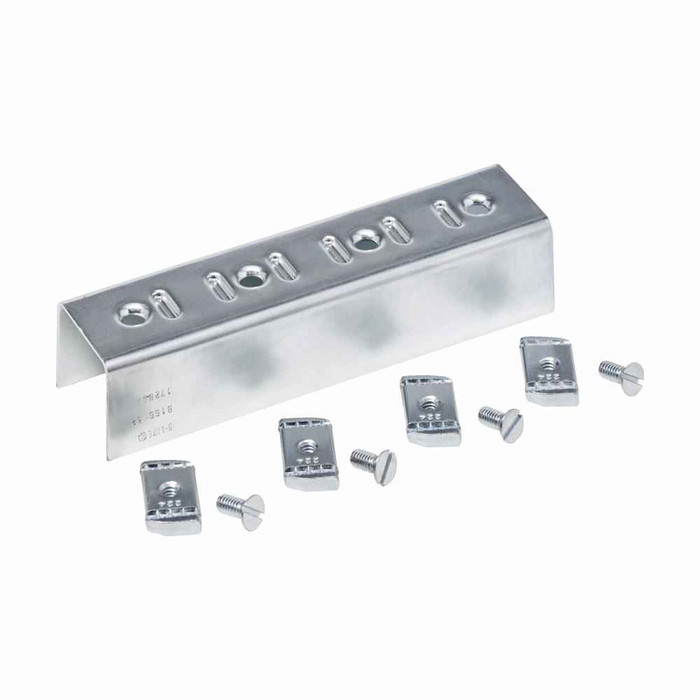

Eaton B-Line series strut fittings and accessories, 1.37" Height, 7.24" Length, 1.68" Width, 0.83lbs, Steel, Four hole splice clevis, Thickness 7/32 in, Fits channel type B32, Electro-plated
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- For Channel Type:
- Fits channel type B32
- Material Gauge:
- 7/32"
- Product Height:
- 1.37 in
- Product Length Depth:
- 7.24 in
- Product Weight:
- .83 lb
- Product Width:
- 1.68 in
- Special Features:
- 1clevis,4 1/4-20 flat screws, 4 pcs. N224WO nuts
- Department:
- Electrical
- Product Group:
- Connectors & Adapters
- Product Subgroup:
- Splice Components
- Product Type:
- Four hole splice clevis
- Product Finish:
- Electro-plated
- Product Details:
- Four hole splice clevis
- Product Material:
- Steel
B-LINE B166-32ZN – Frequently Asked Questions
1) Does the B-Line B166-32ZN splice clevis come with the bolts and nuts, or do I have to buy hardware separately?
Hardware is included. Each B166-32ZN ships as one clevis, four 1/4-20 flat screws, and four N224WO nuts, so the splice can be made up without sourcing fasteners separately.
2) What size strut does the B166-32ZN splice fit?
It is made for B-Line B32 channel. The clevis is drilled and sized for that profile, so it should not be substituted onto a different strut series without confirming the channel is B32.
3) How thick is the steel on this B-Line splice clevis?
Steel at 7/32 inch thick. That is the material gauge of the clevis itself, which is what carries the splice load between the two runs of channel.
4) Is an electro-plated strut splice suitable for outdoor or damp locations?
The B166-32ZN carries an electro-plated zinc finish, which is a dry indoor finish. For exterior runs, wash-down areas or corrosive environments, specify a hot-dip galvanized or stainless splice fitting for B32 channel instead.
5) What thread do the screws in the B166-32ZN take, in case I need replacements?
The supplied screws are 1/4-20 flat head, paired with N224WO nuts. Any replacement hardware needs to match that 1/4-20 thread.
