B-Line B166-11ZN Eaton series ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$184.67
$181.31

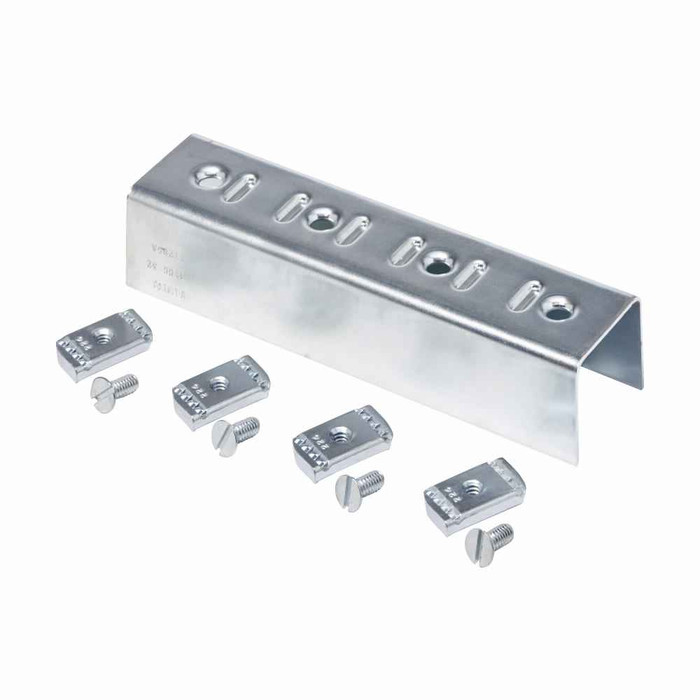

B-Line B166-11ZN Eaton series strut fittings and accessories, 3.5" Height, 7.24" Length, 1.68" Width, 1.28lbs, Steel, Four hole splice clevis, Thickness 7/32 in, Fits channel type B11, Electro-plated

B-Line B166-11ZN Eaton series strut fittings and accessories, 3.5" Height, 7.24" Length, 1.68" Width, 1.28lbs, Steel, Four hole splice clevis, Thickness 7/32 in, Fits channel type B11, Electro-plated

(No reviews yet) Write a Review

Model: B166-11ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$184.67
$181.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 3.5" Height, 7.24" Length, 1.68" Width, 1.28lbs, Steel, Four hole splice clevis, Thickness 7/32 in, Fits channel type B11, Electro-plated

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
For Channel Type:
Fits channel type B11
Material Gauge:
7/32"
Product Height:
3.5 in
Product Length Depth:
7.24 in
Product Weight:
1.28 lb
Product Width:
1.68 in
Special Features:
1clevis,4 1/4-20 flat screws, 4 pcs. N224WO nuts
Department:
Electrical
Product Group:
Connectors & Adapters
Product Subgroup:
Splice Components
Product Type:
Four hole splice clevis
Product Finish:
Electro-plated
Product Details:
Four hole splice clevis
Product Material:
Steel

B-LINE B166-11ZN – Frequently Asked Questions

1) Will the B-Line B166-11ZN splice clevis fit B11 strut channel?
Yes, the B166-11ZN is made for channel type B11. It is a four hole splice clevis in steel, 7/32 inch thick, and it is not intended for other B-Line channel profiles. If your run is a different channel series, order the splice clevis built for that profile instead.
2) Does the B166-11ZN come with the screws and nuts, or do I need to order hardware separately?
Hardware is included. Each B166-11ZN ships as one clevis, four 1/4-20 flat screws, and four N224WO nuts, so you can splice the joint without buying channel nuts separately.
3) What are the dimensions and weight of the B166-11ZN four hole splice clevis?
It measures 7.24 inches long, 3.5 inches high, and 1.68 inches wide, with a material thickness of 7/32 inch, and weighs 1.28 lb. The 7.24 inch length is what lets the four holes straddle the joint between two lengths of B11 channel, so allow that much clear run at the splice point.
4) Is the electro-plated finish on this splice clevis suitable for outdoor or wet locations?
The B166-11ZN carries an electro-plated zinc finish, which is a dry indoor interior finish. For exterior runs, corrosive environments, or wash-down areas, specify a hot dip galvanized or stainless splice fitting rather than the electro-plated version.
5) What is a four hole splice clevis used for on a strut run?
It joins two lengths of strut end to end, bridging the joint so the run behaves as a continuous member instead of two separate pieces. The B166-11ZN clevis sits at the splice and picks up two bolts into each channel through its four holes, using the supplied 1/4-20 flat screws and N224WO channel nuts. It is a joint connector, not a hanger or a beam clamp.
6) What bolt size do the holes in the B166-11ZN take?
The four holes are sized for 1/4-20 hardware, and 1/4-20 flat screws with N224WO channel nuts come in the box. If you replace them, stay with 1/4-20; going up in bolt diameter will not pass through the clevis holes.
7) Is the B166-11ZN a listed or certified product for electrical installations?
The B166-11ZN is a steel strut splice fitting for B11 channel and is sold as a mechanical support component, with no listing or certification stated for it. Where a project spec calls for a listed support assembly, verify the requirement against the channel and support system as a whole rather than the individual splice clevis.
8) What is the exact part number to order this Eaton B-Line splice clevis?
Order it as B-Line B166-11ZN. The B166 is the four hole splice clevis body, the 11 identifies the B11 channel it fits, and ZN is the electro-plated zinc finish.
