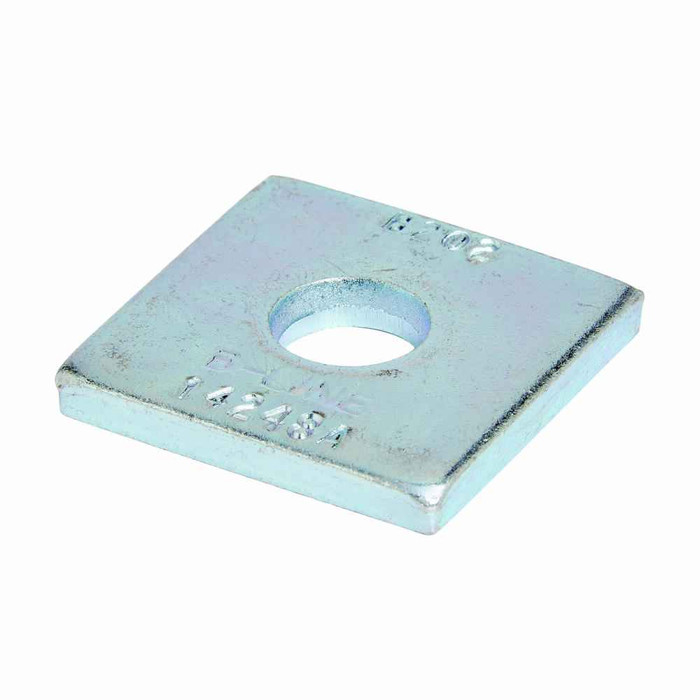

B-Line B202SS6 Eaton series strut fittings and accessories, 1.62" Height, 1.62" Length, 1.62" Width, .17lbs, Steel, Square washer, Hole size 9/16 in diameter, Bolt size 1/2 in, Stainless steel type 316

B-Line B202SS6 Eaton series strut fittings and accessories, 1.62" Height, 1.62" Length, 1.62" Width, .17lbs, Steel, Square washer, Hole size 9/16 in diameter, Bolt size 1/2 in, Stainless steel type 316

(No reviews yet) Write a Review

Model: B202SS6
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$105.02
$66.15
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 1.62" Height, 1.62" Length, 1.62" Width, .17lbs, Steel, Square washer, Hole size 9/16 in diameter, Bolt size 1/2 in, Stainless steel type 316

Manufacturer Resources

Product Specs

Bolt Thread Rod Size:
1/2"
Certifications:
Not Applicable
Product Height:
1.62 in
Product Length Depth:
1.62 in
Product Weight:
.17 lb
Product Width:
1.62 in
Special Features:
Hole size 9/16 in diameter
Department:
Electrical
Product Group:
Fasteners
Product Subgroup:
Washers / Nuts / Bolts / Screws
Product Type:
Square washer
Product Finish:
Stainless steel type 316
Product Details:
Square washer
Product Material:
Steel
Product Length:
1.62 in

B-LINE B202SS6 – Frequently Asked Questions

1) Will the B-Line B202SS6 square washer take a 1/2 inch bolt or threaded rod?
Yes. The B202SS6 square washer is sized for 1/2 inch bolt or rod, with a 9/16 inch diameter hole to give clearance around the 1/2 inch shank.
2) Is the B202SS6 strut washer stainless, and is it suitable for outdoor or corrosive locations?
It is Type 316 stainless steel. 316 is the marine and chemical grade stainless, so it holds up in coastal, wet, and washdown environments better than plain zinc-plated or 304 hardware. Pair it with 316 stainless channel and 316 bolts so you are not mixing dissimilar metals on the run.
3) What size is the B-Line B202SS6 square washer?
It measures 1.62 x 1.62 x 1.62 inches per the published height, length and width, and weighs .17 lb. The footprint is what matters on the job: a square washer this size spans the open slot of standard strut channel so the bolt load bears on the channel edges instead of pulling through.
4) What is a square washer used for on strut channel instead of a round washer?
A square washer distributes the bolt load across the flat of the channel and bridges the slot opening, which a round washer of the same nominal size can drop into. Use the B202SS6 where a 1/2 inch bolt or hanger rod passes through strut or a fitting and you need bearing area rather than just a bolt head.
5) Will a 1/2 inch threaded rod hanger pass through the B202SS6 washer?
Yes. The 9/16 inch hole clears 1/2 inch threaded rod, so it works as a bearing washer under a rod nut on trapeze hangers and pipe or conduit supports.
6) What exact part number do I order for the B-Line 1/2 inch Type 316 stainless square washer?
The manufacturer part number is B202SS6, in the Eaton B-Line strut fittings and accessories line. The SS6 suffix is the Type 316 stainless version.
