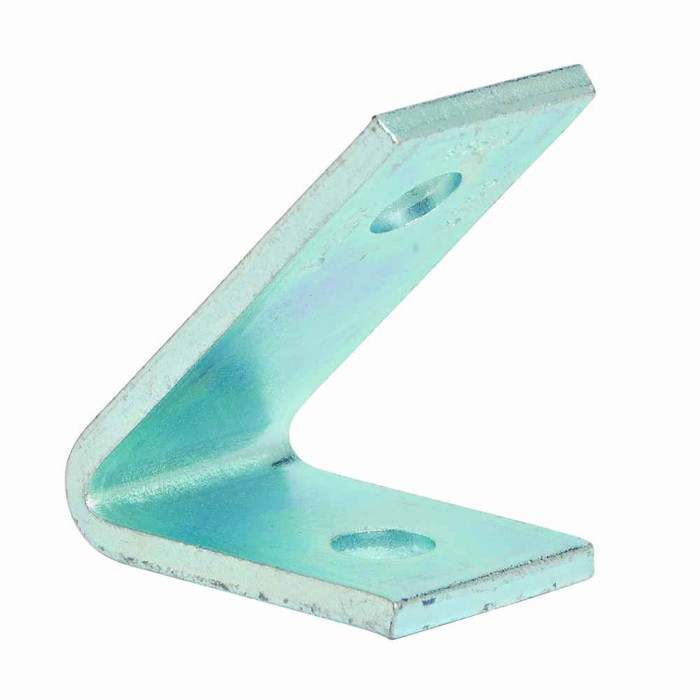

B-Line Eaton series strut fittings and accessories, 1.62" Height, 4.48" Length, 2.35" Width, .63lbs, Steel, Two hole closed angle, 45 deg, Thickness 1

B-Line Eaton series strut fittings and accessories, 1.62" Height, 4.48" Length, 2.35" Width, .63lbs, Steel, Two hole closed angle, 45 deg, Thickness 1

(No reviews yet) Write a Review

Model: B155GRN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,928.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 1.62" Height, 4.48" Length, 2.35" Width, .63lbs, Steel, Two hole closed angle, 45 deg, Thickness 1/4 in, Hole size 9/16 in diameter, DURA GREEN

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Material Gauge:
1/4"
Product Height:
1.62 in
Product Length Depth:
4.48 in
Product Weight:
.63 lb
Product Width:
2.35 in
Special Features:
Hole size 9/16 in diameter
Department:
Electrical
Product Type:
Two hole closed angle, 45 deg
Product Finish:
DURA GREEN
Product Details:
Two hole closed angle, 45 deg
Product Material:
Steel

B-LINE B155GRN – Frequently Asked Questions

1) Will the B-Line B155GRN 45 degree angle bolt to standard 1-5/8 inch strut with 1/2 inch hardware?
Yes. The B155GRN two hole closed angle is punched with 9/16 inch diameter holes, which is the standard strut fitting hole and takes 1/2 inch bolts or channel nuts. Bolts and channel nuts are not part of the fitting, so order them separately.
2) What angle does the B-Line B155GRN fitting hold, and can I adjust it on site?
It is a fixed 45 degree closed angle, not an adjustable hinge fitting. If you need to set an angle other than 45 degrees, use an adjustable or open angle fitting instead; bending this one changes its load behaviour and isn't a field adjustment.
3) Is the DURA GREEN finish on the B155GRN angle fitting suitable for outdoor or damp locations?
DURA GREEN is a coated steel finish, and it is what you specify when plain steel would corrode too fast, such as damp mechanical rooms, wash-down areas, or exterior runs. For heavy chemical or marine exposure, most contractors move to stainless or hot dip galvanized strut fittings instead.
4) How thick is the steel on the B-Line B155GRN angle bracket?
The bracket is 1/4 inch thick steel, which is the heavier of the common strut fitting gauges and is what you want for brackets carrying pipe, conduit racks, or equipment rather than light signage or cable tray support.
5) What part number do I order for the B-Line green 45 degree two hole angle?
Order Eaton B-Line model B155GRN. The GRN suffix is the DURA GREEN finish; the same base fitting is catalogued in other B-Line finishes under different suffixes, so the suffix is what distinguishes it on a purchase order.
6) Does the B155GRN angle fitting carry a UL listing or other certification?
No certification applies to this fitting; it is an unlisted structural strut accessory. If your specification calls for listed components in the support assembly, that requirement normally falls on the channel and the hangers rather than the angle bracket.
