B-Line B155YZN Eaton series st...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$89.76
$54.01

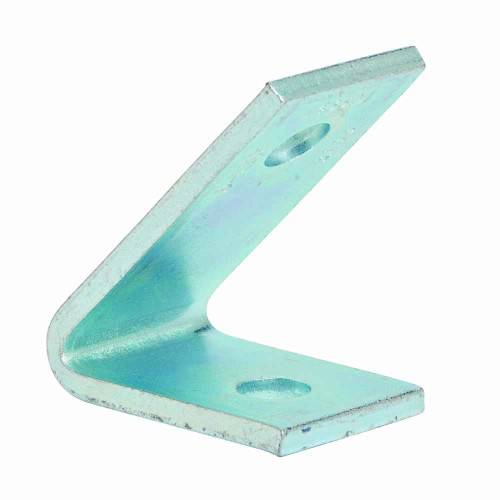

B-Line B155YZN Eaton series strut fittings and accessories, 1.62" Height, 4.48" Length, 2.35" Width, .63lbs, Steel, Two hole closed angle, 45 deg, Thickness 1/4 in, Hole size 9/16 in diameter, Yellow zinc chromate

B-Line B155YZN Eaton series strut fittings and accessories, 1.62" Height, 4.48" Length, 2.35" Width, .63lbs, Steel, Two hole closed angle, 45 deg, Thickness 1/4 in, Hole size 9/16 in diameter, Yellow zinc chromate

(No reviews yet) Write a Review

Model: B155YZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$89.76
$54.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 1.62" Height, 4.48" Length, 2.35" Width, .63lbs, Steel, Two hole closed angle, 45 deg, Thickness 1/4 in, Hole size 9/16 in diameter, Yellow zinc chromate

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Material Gauge:
1/4"
Product Height:
1.62 in
Product Length Depth:
4.48 in
Product Weight:
.63 lb
Product Width:
2.35 in
Special Features:
Hole size 9/16 in diameter
Department:
Electrical
Product Type:
Two hole closed angle, 45 deg
Product Finish:
Yellow zinc chromate
Product Details:
Two hole closed angle, 45 deg
Product Material:
Steel

B-LINE B155YZN – Frequently Asked Questions

1) Will the B-Line B155YZN 45 degree angle bracket take 1/2 inch strut bolts?
The B155YZN is punched with 9/16 inch diameter holes, which is the standard clearance size for 1/2 inch strut nuts and bolts. Two holes total, one leg per side of the 45 degree bend.
2) How thick is the steel on the B-Line B155YZN angle fitting?
Quarter inch steel. The B155YZN is formed from 1/4 in thick steel, which is the heavy gauge B-Line uses on its structural angle fittings rather than the lighter formed sheet used on some brackets. The piece weighs .63 lb.
3) Is yellow zinc chromate finish okay for outdoor or damp locations?
Yellow zinc chromate is a plated finish intended for dry indoor use. It gives good corrosion resistance in conditioned interior spaces, but for exterior runs, parking structures, wash-down areas or coastal sites you want hot dip galvanized or stainless strut hardware instead. The B155YZN is the yellow zinc chromate version.
4) Do I get the strut nuts and bolts with the B-Line B155YZN?
No. The B155YZN is the angle bracket only. You order channel nuts and hex bolts separately, sized to the 9/16 in holes, which means 1/2 inch hardware, and matched to the strut series you are building with.
5) What is the exact part number to order this 45 degree two hole strut angle?
Order it as Eaton B-Line B155YZN. The YZN suffix is the yellow zinc chromate plating; the same bracket body is offered in other B-Line finish codes, so quote the full designation if the job specifies a particular coating.
6) What size is the B155YZN bracket overall, so I know if it clears my strut run?
The fitting measures 4.48 in by 2.35 in by 1.62 in (length, width, height as published). Check that against the free space beside your channel before you order a run of them, particularly where the diagonal lands close to a wall or another trade's work.
