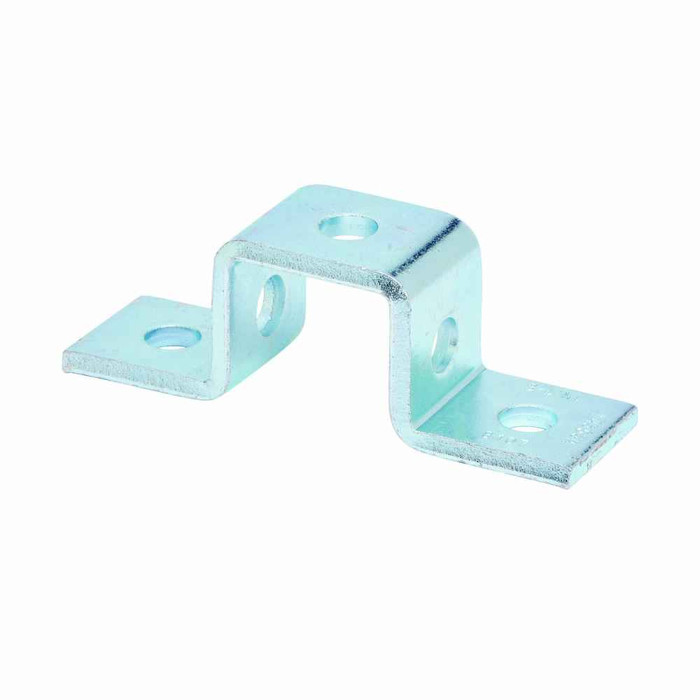

Eaton B-Line series strut fittings and accessories, 1.62" Height, 5.43" Length, 1.62" Width, .85lbs, Steel, Five hole u support, Thickness 1/4 in, Hot-dipped galvanized
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Material Gauge:
- 1/4"
- Product Height:
- 1.62 in
- Product Length Depth:
- 5.43 in
- Product Weight:
- .85 lb
- Product Width:
- 1.62 in
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Supports
- Product Type:
- Five hole u support
- Product Finish:
- Hot-dipped galvanized
- Product Details:
- Five hole u support
- Product Material:
- Steel
B-LINE B107HDG – Frequently Asked Questions
1) Is the B-Line B107HDG five hole U support rated for outdoor or wet locations?
The B107HDG is hot-dipped galvanized steel, which is the finish specified for outdoor, damp, and corrosive environments such as rooftops, parking structures, tunnels, and wash-down areas. Plain or electro-galvanized fittings are the ones to keep indoors and dry. Hot-dip coating covers cut edges and hole punches as well as faces, so it holds up where the part is exposed to weather.
2) Will the B-Line B107HDG fit in a 1-5/8 inch strut channel run?
The fitting is 1.62 inches in both height and width, which is the nominal 1-5/8 inch strut dimension, so it lines up with standard 1-5/8 inch channel profiles. Its 5.43 inch length spans the five hole pattern.
3) What is a five hole U support used for on a strut run?
A five hole U support is a formed U-shaped strut fitting with five bolt holes, used to bridge or saddle a strut channel and tie two runs or a member together. The B107HDG version is the hot-dipped galvanized steel one, so it is the fitting to specify when the connection sits outdoors.
4) What part number do I order for the B-Line hot-dip galvanized five hole U support?
Order Eaton B-Line B107HDG. The HDG suffix is the hot-dipped galvanized finish; the same fitting is catalogued in other finishes under the B107 base number, so the suffix is the part of the number that matters when the job calls for exterior-rated hardware.
5) Does the B107HDG U support come with bolts and channel nuts?
The B107HDG is supplied as the fitting alone, .85 lb of 1/4 inch galvanized steel. Hardware to attach it is ordered separately, and on an exterior run the bolts and channel nuts should match the finish so you are not pairing zinc-plated fasteners with a hot-dip fitting and inviting galvanic corrosion.
