B-Line Eaton series strut fitt...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$39,458.45

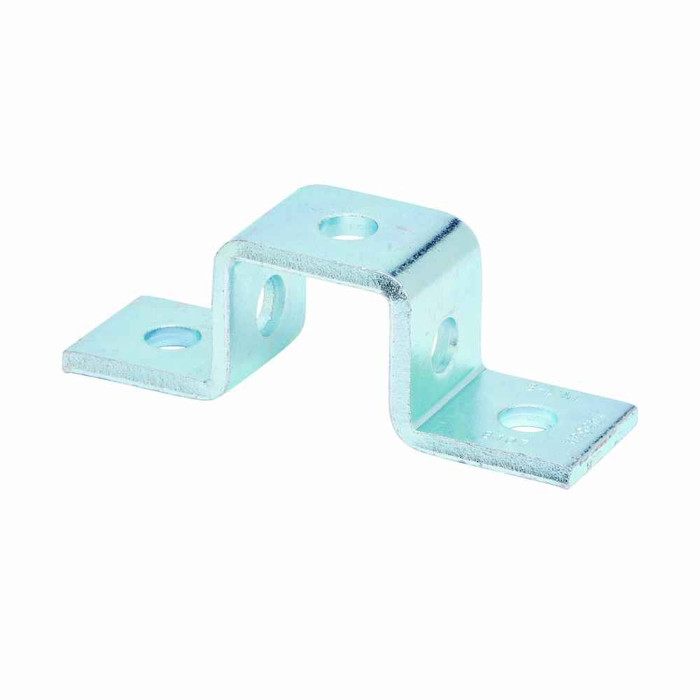

B-Line Eaton series strut fittings and accessories, 1.62" Height, 5.43" Length, 1.62" Width, .85lbs, Steel, Five hole u support, Thickness 1/4 in, Sta

B-Line Eaton series strut fittings and accessories, 1.62" Height, 5.43" Length, 1.62" Width, .85lbs, Steel, Five hole u support, Thickness 1/4 in, Sta

(No reviews yet) Write a Review

Model: B107SS6
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$39,458.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 1.62" Height, 5.43" Length, 1.62" Width, .85lbs, Steel, Five hole u support, Thickness 1/4 in, Stainless steel type 316

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Material Gauge:
1/4"
Product Height:
1.62 in
Product Length Depth:
5.43 in
Product Weight:
.85 lb
Product Width:
1.62 in
Department:
Electrical
Product Group:
Clamps & Supports
Product Subgroup:
Supports
Product Type:
Five hole u support
Product Finish:
Stainless steel type 316
Product Details:
Five hole u support
Product Material:
Steel

B-LINE B107SS6 – Frequently Asked Questions

1) Is the B-Line B107SS6 U support suitable for outdoor or corrosive environments like wastewater and coastal sites?
It is made in stainless steel type 316, which is the grade specified for chloride and chemical exposure such as coastal air, wastewater plants and food processing. That is why it costs more than a plain electrogalvanized fitting, and it is the reason to pick it over a painted or zinc-plated U support on an exposed run.
2) Will the B107SS6 fit standard 1-5/8 inch strut channel?
Yes. The fitting is 1.62 inches wide and 1.62 inches high, which is the nominal 1-5/8 inch strut profile, and it runs 5.43 inches over the five holes.
3) What is the Eaton B-Line B107SS6 five hole U support used for?
The B107SS6 is a five hole U-shaped strut fitting, used to bridge or wrap a strut channel and tie members together at a joint. It is a steel fitting in stainless steel type 316, 1/4 inch thick material, measuring 5.43 x 1.62 x 1.62 inches and weighing .85 lb.
4) What part number do I order for the B-Line 316 stainless five hole U support?
Order Eaton B-Line B107SS6. The SS6 suffix is the type 316 stainless version of the B107 five hole U fitting.
5) Do the B107SS6 U support bolts and strut nuts come with it?
The B107SS6 is supplied as the fitting only, .85 lb of 1/4 inch 316 stainless. Channel nuts, bolts and washers are ordered separately, and on a 316 stainless install you want matching 316 hardware so you do not set up galvanic corrosion at the joint.
