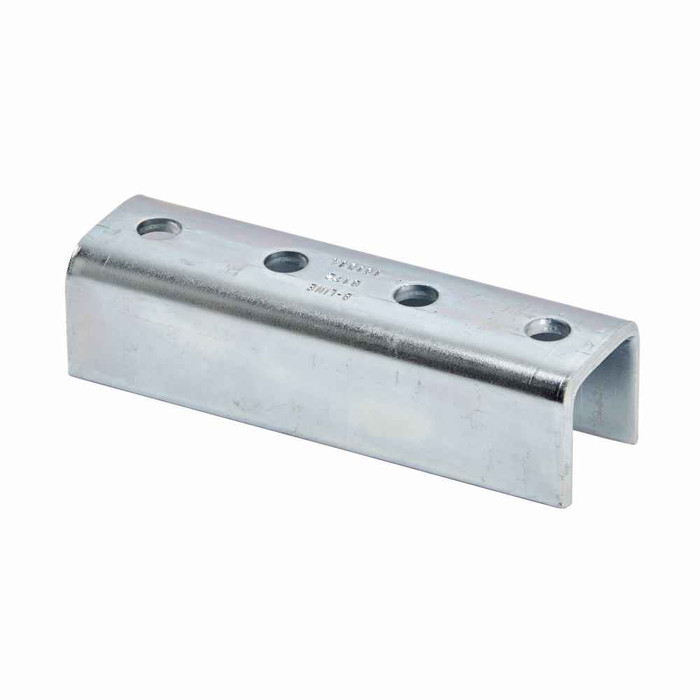

B-Line B172HDG Eaton series st...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$223.74
B-Line B172HDG Eaton series strut fittings and accessories, 1.62" Height, 7.24" Length, 2.12" Width, 2.66lbs, Steel, Four hole splice clevis, Thickness 7/32 in, Fits channel type B22 or B52A, Hot-dipped galvanized

B-Line B172HDG Eaton series strut fittings and accessories, 1.62" Height, 7.24" Length, 2.12" Width, 2.66lbs, Steel, Four hole splice clevis, Thickness 7/32 in, Fits channel type B22 or B52A, Hot-dipped galvanized

(No reviews yet) Write a Review

Model: B172HDG
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$223.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 1.62" Height, 7.24" Length, 2.12" Width, 2.66lbs, Steel, Four hole splice clevis, Thickness 7/32 in, Fits channel type B22 or B52A, Hot-dipped galvanized

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
For Channel Type:
Fits channel type B22 or B52A
Material Gauge:
7/32"
Product Height:
1.62 in
Product Length Depth:
7.24 in
Product Weight:
2.66 lb
Product Width:
2.12 in
Department:
Electrical
Product Group:
Connectors & Adapters
Product Subgroup:
Splice Components
Product Type:
Four hole splice clevis
Product Finish:
Hot-dipped galvanized
Product Details:
Four hole splice clevis
Product Material:
Steel

B-LINE B172HDG – Frequently Asked Questions

1) Can the B172HDG splice clevis be used outdoors or in a wash-down area?
It's steel with a hot-dipped galvanized finish, which is the finish specified for exterior runs, parking structures, and damp or corrosive interior areas. Plain electro-galvanized fittings are the indoor-only option.
2) Do bolts and channel nuts come with the B-Line B172HDG splice clevis?
No. The B172HDG is supplied as the clevis only. You'll need four bolts with matching channel nuts or spring nuts sized to the B22 or B52A strut to make up the splice.
3) How thick is the steel on the B-Line B172HDG clevis?
7/32 inch material thickness. That's the load-bearing section at the splice, and it's why the fitting weighs 2.66 lb despite being a small part.
4) Should I use a four hole splice clevis or a flat splice plate to join strut?
A clevis like the B172HDG wraps the channel rather than sitting flat on one face, so it takes the joint in shear across four fasteners and keeps the splice aligned in a continuous run. A flat plate is the lighter option where you're only tying two pieces together in one plane and the joint carries little load.
5) What is the exact part number to order for this B-Line splice clevis?
Order Eaton B-Line B172HDG. The HDG suffix is the hot-dipped galvanized version of the B172 clevis.
