B-Line B267LZN Eaton series st...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$134.45
$100.08

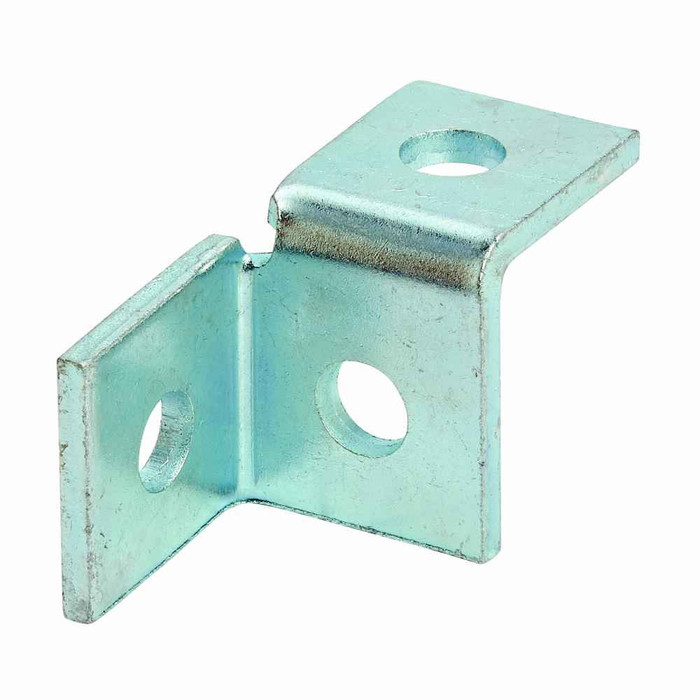

B-Line B267LZN Eaton series strut fittings and accessories, 2.06" Height, 3.5" Length, 1.62" Width, .54lbs, Steel, Left hand three hole single corner wing fitting, Electro-plated

B-Line B267LZN Eaton series strut fittings and accessories, 2.06" Height, 3.5" Length, 1.62" Width, .54lbs, Steel, Left hand three hole single corner wing fitting, Electro-plated

(No reviews yet) Write a Review

Model: B267LZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$134.45
$100.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 2.06" Height, 3.5" Length, 1.62" Width, .54lbs, Steel, Left hand three hole single corner wing fitting, Electro-plated

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
2.06 in
Product Length Depth:
3.5 in
Product Weight:
.54 lb
Product Width:
1.62 in
Department:
Electrical
Product Type:
Left hand three hole single corner wing fitting
Product Finish:
Electro-plated
Product Details:
Left hand three hole single corner wing fitting
Product Material:
Steel

B-LINE B267LZN – Frequently Asked Questions

1) Is the B-Line B267LZN strut fitting left hand or right hand?
The B267LZN is the left hand version of the three hole single corner wing fitting. Handing matters on wing fittings because the wing (the offset leg) turns one way only, so a left hand part will not mirror into a right hand corner. Confirm which way your corner breaks before ordering, and order the right hand counterpart if the wing needs to face the other side.
2) Is the B267LZN fitting galvanized or plated, and can I use it outdoors?
It is steel with an electro-plated finish. Electro-plating is a thin zinc coating suited to dry indoor and protected environments. For exposed exterior runs, wash-down areas, or corrosive atmospheres, specify a hot dip galvanized or stainless equivalent instead.
3) Does the B267LZN come with the strut nuts and bolts I need?
The B267LZN is supplied as the fitting only, a single corner wing bracket with three holes. You order strut nuts, bolts and washers separately, sized to the channel you are attaching to. Plan on hardware for each of the three holes you intend to use.
4) What is a three hole corner wing fitting used for on a strut run?
It ties two strut members together at a corner where the connection has to step off to one side rather than lie flat in the same plane. The wing carries the offset leg and the three holes give you bolt positions for bracing conduit racks, pipe supports and equipment frames. If your two struts meet flush in the same plane, a flat angle or flat plate fitting is the simpler choice.
5) What is the manufacturer part number for this Eaton B-Line corner wing fitting?
Order it as B267LZN from Eaton's B-Line series of strut fittings and accessories. The L in the number is the left hand designation.
