B-Line B267LHDG Eaton series s...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$163.85
$135.70

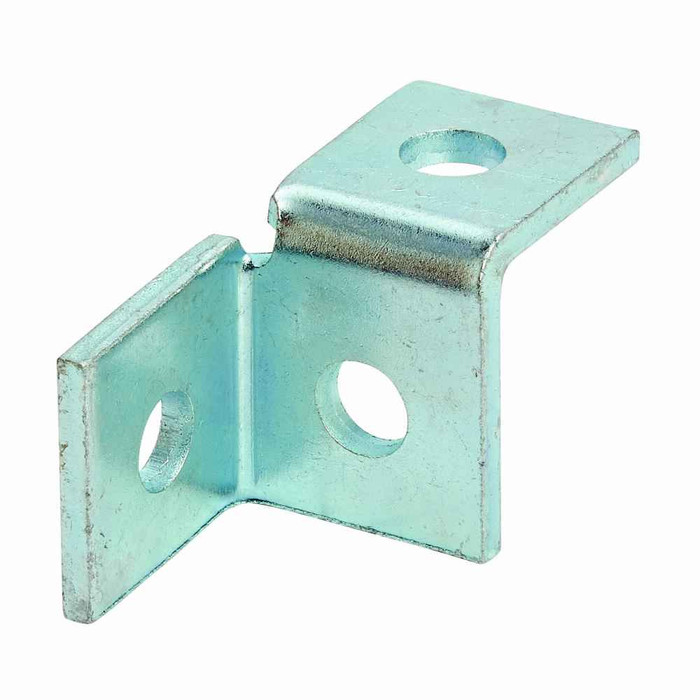

B-Line B267LHDG Eaton series strut fittings and accessories, 2.06" Height, 3.5" Length, 1.62" Width, .54lbs, Steel, Left hand three hole single corner wing fitting, Hot-dipped galvanized

B-Line B267LHDG Eaton series strut fittings and accessories, 2.06" Height, 3.5" Length, 1.62" Width, .54lbs, Steel, Left hand three hole single corner wing fitting, Hot-dipped galvanized

(No reviews yet) Write a Review

Model: B267LHDG
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$163.85
$135.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 2.06" Height, 3.5" Length, 1.62" Width, .54lbs, Steel, Left hand three hole single corner wing fitting, Hot-dipped galvanized

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
2.06 in
Product Length Depth:
3.5 in
Product Weight:
.54 lb
Product Width:
1.62 in
Department:
Electrical
Product Type:
Left hand three hole single corner wing fitting
Product Finish:
Hot-dipped galvanized
Product Details:
Left hand three hole single corner wing fitting
Product Material:
Steel

B-LINE B267LHDG – Frequently Asked Questions

1) Is the B-Line B267LHDG a left hand or right hand strut wing fitting?
The B267LHDG is the left hand version. It is a left hand three hole single corner wing fitting, so handing matters when you lay it out: mirror-image corners on the opposite side of a run need the right hand part instead. Check the orientation of the wing against your strut before you order a box of one hand.
2) Can the B-Line B267LHDG wing fitting be used outdoors or in a damp area?
It is hot-dipped galvanized steel, which is the finish specified for wet, outdoor, and corrosive-exposure strut runs such as rooftops, parking structures, and washdown areas. Plain or electro-galvanized fittings are the indoor-dry choice; this one is the version to use where moisture is a factor.
3) How many bolt holes does the B267LHDG corner fitting have, and what is it used for?
Three holes. It is a single corner wing fitting, meaning it braces one strut member to another at a corner, with three fastener points spread across the wing to pick up the load. You bolt it into the channel with strut nuts and hardware, which are ordered separately.
4) Do strut fittings like the B267LHDG come with bolts and channel nuts?
No. The B267LHDG is supplied as the steel fitting only, so budget separate channel nuts and bolts for each of its three holes. Match the fastener finish to the fitting: hot-dipped galvanized hardware with a hot-dipped galvanized fitting, otherwise you get dissimilar-finish corrosion at the connection in an exterior run.
5) Is the B-Line B267LHDG the same as an Eaton B267 fitting?
Yes, same part. B-Line is Eaton's strut and support line, and the HDG suffix on B267LHDG identifies the hot-dipped galvanized finish of the left hand B267 corner wing fitting. If a drawing calls out Eaton B-Line B267 LH in HDG, this is the catalog number to order.
