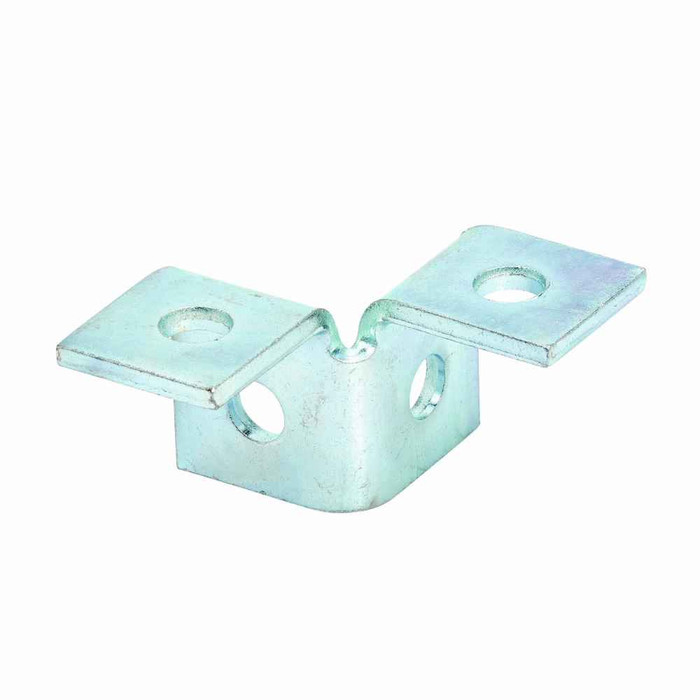

Eaton B-Line series strut fittings and accessories, 2.06" Height, 3.5" Length, 1.62" Width, .71lbs, Aluminium, Four hole double corner wing fitting, 90 deg, Thickness 1/4 in, Aluminum
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Material Gauge:
- 1/4"
- Product Height:
- 2.06 in
- Product Length Depth:
- 3.5 in
- Product Weight:
- .71 lb
- Product Width:
- 1.62 in
- Department:
- Electrical
- Product Type:
- Four hole double corner wing fitting, 90 deg
- Product Finish:
- Aluminum
- Product Details:
- Four hole double corner wing fitting, 90 deg
- Product Material:
- Aluminum
B-LINE B119AL – Frequently Asked Questions
1) What does the B-Line B119AL four hole corner wing fitting actually do in a strut assembly?
The B119AL is a 90 degree double corner wing fitting for Eaton B-Line strut framing. It joins two runs of strut at a right angle, with four bolt holes (two per wing) so each leg picks up two fasteners instead of one. That double-hole pattern is what resists twisting at the corner, which matters on cantilevered trapeze runs and rack corners. Bolts, channel nuts and washers are hardware you order separately.
2) Is the B119AL strut fitting steel or aluminum, and where does that matter?
It is aluminum, both in material and finish, so there is no plating to chip and no zinc to sacrifice. That makes it a reasonable pick for damp, washdown or coastal electrical work where a plated steel fitting would eventually bloom rust. Keep in mind aluminum against galvanized steel strut is a normal pairing, but heavy dissimilar-metal contact in standing salt water is a corrosion consideration on any job.
3) How thick is the B-Line B119AL corner fitting?
Quarter inch stock. That 1/4 in gauge is the number to check against your drawing if the spec calls out a minimum fitting thickness for the connection, and it is heavier material than the thinner formed angles often used for light duty bracing.
4) Do I need anything besides the fitting to make a strut corner connection?
Yes. The B119AL is the fitting only. Each of the four holes needs a bolt with a channel nut or spring nut sized to your strut, plus washers per your practice. Order those at four per fitting so you are not short at the end of a run.
5) Should I use a four hole double corner wing fitting or a plain 90 degree angle bracket?
A two hole angle gives each leg one bolt, which lets the joint rotate under load and is fine for light bracing. The four hole double wing pattern on the B119AL puts two fasteners in each leg, so the corner is fixed rather than pinned. Use it where the corner carries moment, such as a cantilever arm or a freestanding rack frame, and save the simpler angle for backing and incidental support.
6) What is the part number to order for this B-Line aluminum corner wing fitting?
Order it as Eaton B-Line B119AL. The AL suffix is the aluminum version, which is the material and finish on this part.
