Eaton B-Line Square Post Base Strut Fitting 3.5" Height Steel Electro-Plated Channel B22

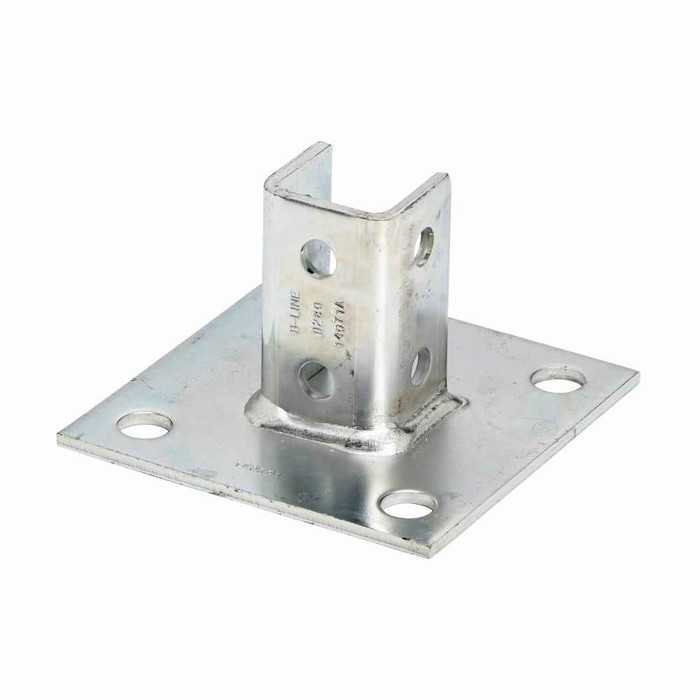

Eaton B-Line Square Post Base Strut Fitting

Professional Electrical Support System Component

The Eaton B-Line Square Post Base Strut Fitting delivers exceptional structural support and electrical system organization for professional electrical installations. This steel construction square post base provides reliable centered mounting designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced engineering that professionals trust from the global leader in intelligent power management and electrical support systems.

Professional Features & Benefits

Structural Performance

• Steel Construction - Provides exceptional strength and durability for long-lasting electrical support system performance
• 3.5" Height Design - Optimal vertical clearance for professional electrical equipment mounting and cable management
• 6" x 6" Base Dimensions - Stable platform design ensures secure mounting for electrical components and conduit systems
• 3.92 lb Weight Rating - Robust construction provides reliable load-bearing capacity for electrical equipment support

Installation & Compatibility

• Channel B22 Compatibility - Engineered specifically for seamless integration with Eaton B-Line B22 strut channel systems
• Centered Square Post Design - Precise alignment ensures professional installation and optimal load distribution
• Electro-Plated Finish - Superior corrosion resistance and professional appearance for commercial and industrial environments

Technical Specifications

Height: 3.5 inches, Length: 6 inches, Width: 6 inches, Weight: 3.92 pounds, Material: Steel construction, Type: Square post base with centered design, Compatibility: Fits channel B22, Finish: Electro-plated for corrosion resistance, Certifications: Not Applicable for standard structural applications

Installation & Usage

1. Verify compatibility with B22 strut channel system and confirm proper load requirements
2. Position square post base in desired location ensuring level surface contact
3. Secure base to mounting surface using appropriate fasteners for substrate material
4. Align B22 strut channel with centered post design for optimal load distribution
5. Connect strut channel to post base using compatible B-Line hardware and fittings
6. Verify secure connection and proper alignment before installing electrical equipment

Professional Applications

Ideal for:

• Electrical Equipment Support - Mounting platforms for electrical panels, switchgear, and control equipment
• Conduit and Cable Management - Support systems for electrical conduit runs and cable tray installations
• Industrial Electrical Systems - Structural support for manufacturing facility electrical distribution systems
• Commercial Building Infrastructure - Professional electrical support systems for office buildings and retail facilities
• Data Center Applications - Reliable mounting solutions for critical electrical and telecommunications equipment
• Utility and Power Generation - Structural support for electrical equipment in power generation and distribution facilities
• Healthcare Facility Systems - Clean, professional electrical support systems for medical facility electrical infrastructure
• Educational Institution Projects - Durable electrical support solutions for schools and university electrical systems

B-Line Engineering Advantage

Eaton's B-Line series represents decades of engineering excellence in electrical support systems, providing professional-grade structural solutions that meet the demanding requirements of modern electrical installations. The precision-engineered square post base design ensures optimal load distribution and secure mounting, while the electro-plated steel construction delivers long-lasting performance in challenging commercial and industrial environments.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers the structural support solutions that electrical professionals trust worldwide. Our B-Line series strut fittings and accessories provide the reliability, precision engineering, and professional quality that electricians, electrical contractors, and facility managers depend on for critical electrical infrastructure projects, backed by Eaton's commitment to electrical safety and performance excellence.
