B-Line B115YZN Eaton series st...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$92.57
$57.87

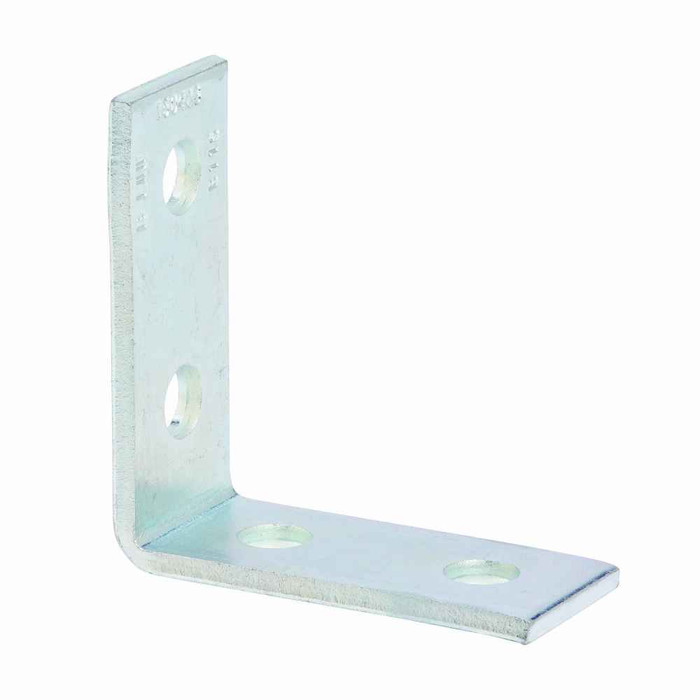

B-Line B115YZN Eaton series strut fittings and accessories, 3.93" Height, 3.75" Length, 1.62" Width, .76lbs, Steel, Pre-assembled fitting, Four hole adjustable corner angle, 90 deg, Thickness 1/4 in, Yellow zinc chromate

B-Line B115YZN Eaton series strut fittings and accessories, 3.93" Height, 3.75" Length, 1.62" Width, .76lbs, Steel, Pre-assembled fitting, Four hole adjustable corner angle, 90 deg, Thickness 1/4 in, Yellow zinc chromate

(No reviews yet) Write a Review

Model: B115YZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$92.57
$57.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 3.93" Height, 3.75" Length, 1.62" Width, .76lbs, Steel, Pre-assembled fitting, Four hole adjustable corner angle, 90 deg, Thickness 1/4 in, Yellow zinc chromate

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Material Gauge:
1/4"
Product Height:
3.93 in
Product Length Depth:
3.75 in
Product Weight:
.76 lb
Product Width:
1.62 in
Special Features:
Pre-assembled fitting
Department:
Electrical
Product Type:
Four hole adjustable corner angle, 90 deg
Product Finish:
Yellow zinc chromate
Product Details:
Four hole adjustable corner angle, 90 deg
Product Material:
Steel

B-LINE B115YZN – Frequently Asked Questions

1) What is the B-Line B115YZN strut fitting used for?
The B115YZN is a four hole adjustable corner angle for strut framing. It joins two runs of strut at a corner and pivots so the included angle can be set rather than fixed, with the 90 degree position being the nominal setting. It ships pre-assembled, so the pivot hardware is already in place when it arrives.
2) Do I need to order the bolts and nuts separately for the B115YZN corner angle?
The B115YZN comes pre-assembled, meaning the fitting's own pivot hardware is included. The channel nuts and bolts that fasten it to the strut itself are separate items, so order strut nuts and hex head bolts sized to your channel along with the fitting.
3) How thick is the steel on the B-Line B115YZN corner angle?
Quarter inch steel. The B115YZN is a 1/4 in thick steel fitting, which is the heavier of the common strut fitting gauges and is what you want on load carrying corners rather than light trim work.
4) What are the dimensions and weight of the B-Line B115YZN angle fitting?
It measures 3.93 in height, 3.75 in length/depth and 1.62 in width, and weighs .76 lb. Those numbers matter when you are checking clearance behind a corner joint or tallying fitting weight on a long overhead run.
5) Is the yellow zinc chromate finish on the B115YZN okay for outdoor or damp locations?
Yellow zinc chromate is a plated finish meant for dry indoor and protected service. For exterior, washdown or corrosive areas, specify a hot dip galvanized or stainless version of the fitting instead. The 1.62 in wide steel body is the same either way, only the coating changes.
6) Should I use an adjustable corner angle or a fixed 90 degree bracket on my strut run?
Use the adjustable type, like the B115YZN, when the two members do not meet at a true square or when the frame has to be squared up on site. A fixed 90 degree bracket is the better pick for a rigid, repeatable right angle because there is no joint that can shift under vibration. The B115YZN is set nominally at 90 deg but pivots off it.
7) How many bolt holes does the B115YZN fitting have and how does that affect the joint?
Four holes, two per leg. That gives you two fasteners into each run of strut, which resists the joint rotating far better than a single bolt per leg. Combined with the 1/4 in steel body, it is a corner meant to carry load rather than just locate the members.
8) What is the exact part number to order this B-Line corner angle under?
Order it as Eaton B-Line B115YZN. The YZN suffix identifies the yellow zinc chromate finish, so a plain B115 or a galvanized version is a different item number.
