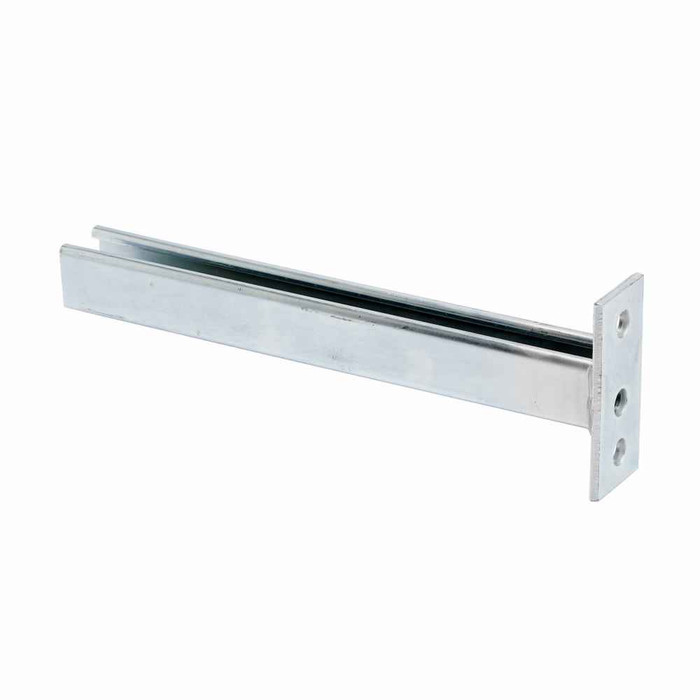

Eaton B-Line series strut fittings and accessories, 4.62" Height, 12" Length, 1.62" Width, 2.32lbs, Steel, Single channel bracket, Uniform load capacity 960 lbs, Hot-dipped galvanized
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- 4.62 in
- Product Length Depth:
- 12 in
- Product Weight:
- 2.32 lb
- Product Width:
- 1.62 in
- Department:
- Electrical
- Product Group:
- Mounting Hardware
- Product Subgroup:
- Brackets
- Product Type:
- Single channel bracket
- Product Finish:
- Hot-dipped galvanized
- Product Details:
- Single channel bracket
- Product Material:
- Steel
B-LINE B409-12HDG – Frequently Asked Questions
1) How much load will the B-Line B409-12HDG single channel bracket carry?
The B409-12HDG carries a uniform load capacity of 960 lbs. That figure is for the bracket itself; the anchors and the strut you fasten it to have to be rated for at least as much, or they become the weak point in the run.
2) Can the B409-12HDG strut bracket be used outdoors or in a wet area?
Yes. It is hot-dipped galvanized steel, which is the finish specified for exterior, damp, and washdown locations where a plain or electro-plated bracket would rust out. Good for rooftop mechanical supports, parking structures, and unconditioned spaces.
3) What size is the B-Line B409-12HDG bracket?
It measures 12 inches on the length, 4.62 inches on the height, and 1.62 inches on the width, and weighs 2.32 lbs. The 1.62 inch dimension is what matters when you are fitting it against standard 1-5/8 inch strut face, and the 12 inch leg is the reach you get off the mounting surface.
4) What is a single channel bracket used for on a strut system?
A single channel bracket like the B409-12HDG is the piece that takes a run of strut off a wall, column, or deck and holds it out at a fixed distance, so you can hang conduit, cable tray, pipe, or equipment clear of the structure. Single channel means it is sized to the face of one strut section rather than back-to-back doubled strut.
5) Is the B-Line B409-12HDG bracket suitable for electrical conduit and cable tray support?
Yes, that is its department. It is an Eaton B-Line series strut fitting catalogued for electrical work, steel construction with a 960 lb uniform load rating, so it handles conduit racks, tray drops, and light equipment supports on a strut run.
6) Do I get the bolts and channel nuts with the B409-12HDG bracket?
Order the fasteners separately. The B409-12HDG is supplied as the bracket only, so you will need the channel nuts, hex bolts, and whatever concrete or steel anchors your base material calls for to complete the connection.
