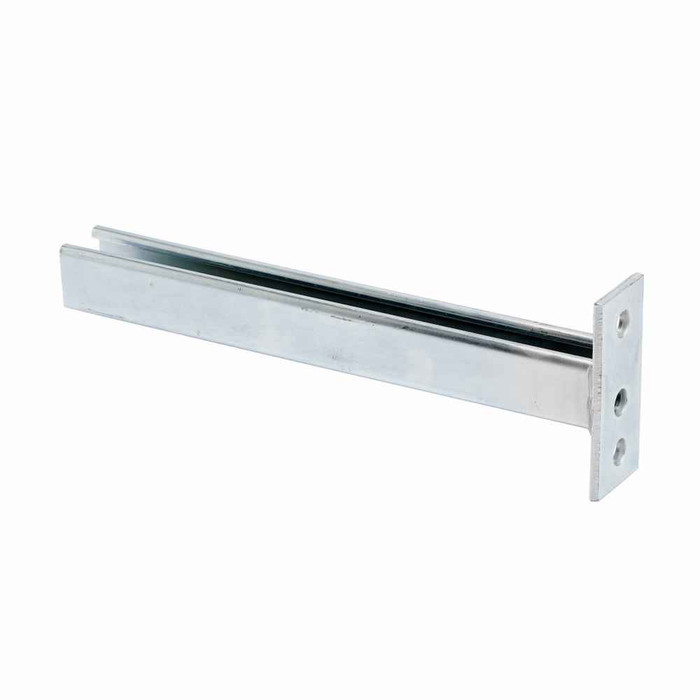

B-Line B409-9SS6 Eaton series strut fittings and accessories, 4.62" Height, 9" Length, 1.62" Width, 1.95lbs, Steel, Single channel bracket, Uniform load capacity 1280 lbs, Stainless steel type 316

The B409-9SS6 single channel bracket is type 316 stainless steel, which is the grade specified for coastal, wastewater, chemical, and other chloride-exposed environments. If your run is outdoors, in a washdown area, or near salt air, this is the finish you want rather than plain electro-galvanized strut hardware.

It measures 4.62 in height, 9 in length/depth, and 1.62 in width, and weighs 1.95 lb. The 1.62 in width is the dimension that matters for fit against standard 1-5/8 in strut channel, so it seats flush on a 1-5/8 in profile.

No. The B409-9SS6 is the bracket only, at 1.95 lb. Order your channel nuts and hardware separately, and in a 316 stainless environment match them to the bracket so you are not mixing carbon steel fasteners with 316 stainless and setting up galvanic corrosion.

A single channel bracket like the B409-9SS6 is a fixed-angle fitting that ties one length of strut to a wall, a beam, or another piece of channel, giving you a rigid support arm off the structure. Its 9 in length is what determines how far the supported channel or equipment stands off the mounting surface, so pick the length by the standoff your conduit or equipment run needs.

Order Eaton B-Line B409-9SS6. The SS6 suffix is the type 316 stainless version; the same B409 bracket body is offered in other finishes, so the suffix is what you have to get right on the purchase order for a corrosive-duty job.

The material is recorded as steel with a type 316 stainless steel finish designation. For specification purposes on a corrosive-service submittal, the governing line is the 316 stainless callout in the SS6 part suffix.
