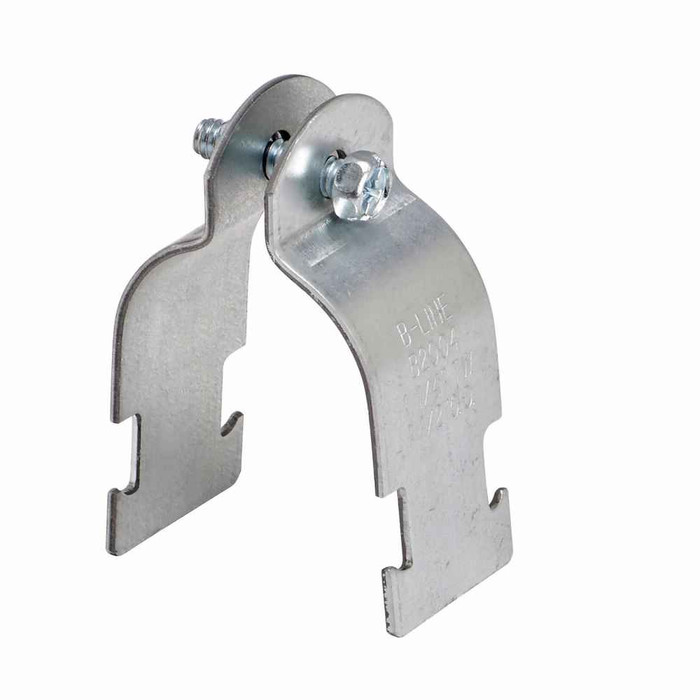

B-Line Eaton series strut pipe clamps and accessories, .0677" height, 2.608" length, 1.25" width, 600 lbs, Steel, Pre-assembled combination recess hex

The B2009PAYZN strut pipe clamp is rated at 600 lbs load capacity. That is the clamp itself; the strut channel, its anchors, and the spacing of your supports still govern what the run can actually carry, so size the trapeze and fasteners to the same or higher load.

The screw ships on the clamp. The B2009PAYZN comes with a pre-assembled combination recess hex head screw, so it can be driven with a hex driver or a screwdriver bit and there is no loose hardware to lose on a lift. You still supply the strut channel and, depending on your strut, the channel nut.

It is steel with a yellow zinc chromate finish. Yellow zinc is a plated coating suited to dry indoor and protected areas. For open exterior runs, wash-down areas, or corrosive environments, specify a hot dip galvanized or stainless clamp instead.

No listing or rating is carried on the B2009PAYZN. It is catalogued as Not Applicable for certifications, so if your job specification calls for a listed or agency rated pipe support, the submittal has to come from the manufacturer for that specific assembly rather than from this part record.

That is exactly what it does. A strut pipe clamp bolts to the face of a strut channel and captures the pipe or conduit against it, so one channel run can carry several lines at fixed spacing instead of hanging each one on its own rod. Order it by the pipe or conduit size it is built to grip, and match the finish to the environment. This one is steel with a yellow zinc chromate plating for interior work.

The B2009PAYZN measures 2.608 x 1.25 x .0677 inches and weighs .15 lb each. The .0677 inch figure is the material thickness of the stamped steel body, which is why it is so much smaller than the other two numbers. Use the .15 lb unit weight when you are totalling hanger weight on a large trapeze package.
