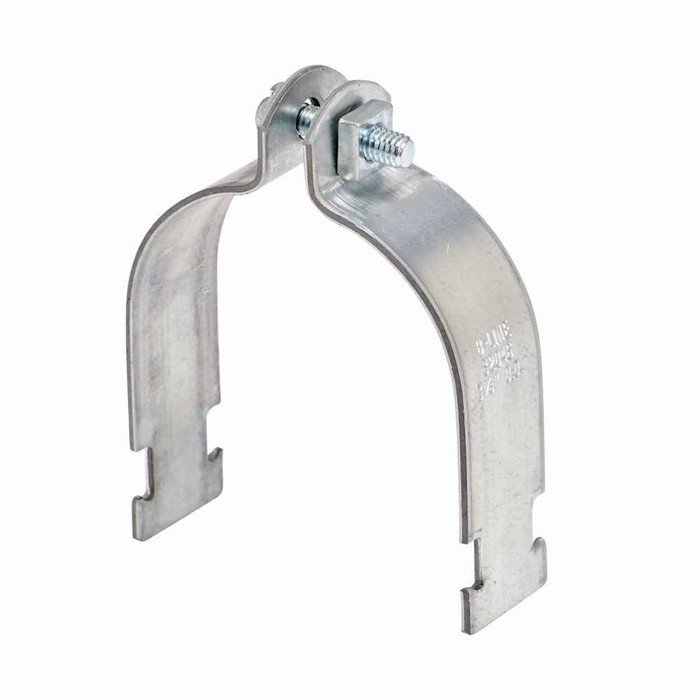

Eaton B-Line series strut pipe clamps and accessories, .0994" height, 5.683" length, 1.25" width, 800 lbs, Steel, O.D pipe conduit clamp, Electro-plated zinc
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Load Capacity:
- 800 lbs
- Product Height:
- .0994 in
- Product Length Depth:
- 5.683 in
- Product Weight:
- .43 lb
- Product Width:
- 1.25 in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Conduit Accessories
- Product Type:
- O.D pipe conduit clamp
- Product Details:
- O.D pipe conduit clamp
- Product Material:
- Steel
B-LINE B2048ZN – Frequently Asked Questions
1) Is the B2048ZN clamp sized by pipe O.D. or by nominal pipe size?
By outside diameter. The B2048ZN is an O.D. pipe conduit clamp, so measure the actual outside diameter of the tube or conduit you are supporting rather than working from a nominal trade size. Copper tube, EMT and steel pipe of the same nominal call-out all have different O.D.s, and an O.D. clamp has to match the real measurement.
2) What are the dimensions of the B2048ZN pipe clamp?
It measures .0994 in, 5.683 in, and 1.25 in for height, length/depth, and width respectively, and weighs .43 lb each. The 5.683 in dimension is the one to check against the pipe outside diameter you are clamping, and the 1.25 in width is what sits against the strut face.
3) Will the electro-plated zinc finish on the B2048ZN hold up outdoors?
Electro-plated zinc on steel is a light indoor-duty coating. It is fine for dry interior mechanical rooms, ceilings and plenum runs. For exterior, wet, or corrosive environments, spec a hot-dip galvanized or stainless clamp instead, and keep the strut, channel nuts and hardware in the same finish family so you are not setting up dissimilar metal contact.
4) Does the B2048ZN clamp come with the channel nut and bolt to mount it to strut?
The B2048ZN is supplied as the pipe conduit clamp itself. Strut channel, channel nuts, and the mounting hardware are separate items, so add them to the order if you are not pulling them from stock. Match the channel nut to the strut series you are running.
5) What part number do I order for this Eaton B-Line O.D. pipe clamp?
Order by manufacturer part number B2048ZN, Eaton B-Line series. The ZN suffix is the electro-plated zinc finish, so if a submittal calls for a different coating on the same clamp body you are looking at a different suffix, not this one.
6) Can I use the B2048ZN steel clamp on copper tubing?
It is a steel clamp, and steel in direct contact with copper tube invites galvanic corrosion plus noise transfer. If the run is copper, use a felt or cushion-lined clamp, or isolate the tube. On steel pipe, EMT, and rigid conduit the bare steel clamp is the normal choice.
