B-Line Eaton series strut pipe...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$4,266.64

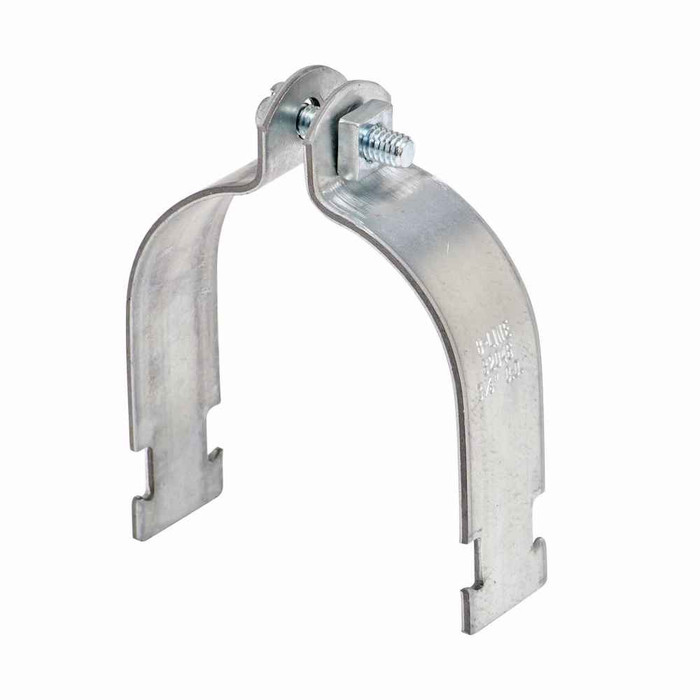

B-Line Eaton series strut pipe clamps and accessories, .0994" height, 5.984" length, 1.25" width, Steel, O.D pipe conduit clamp, Electro-plated zinc

B-Line Eaton series strut pipe clamps and accessories, .0994" height, 5.984" length, 1.25" width, Steel, O.D pipe conduit clamp, Electro-plated zinc

(No reviews yet) Write a Review

Model: B2052PAZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,266.64
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut pipe clamps and accessories, .0994" height, 5.984" length, 1.25" width, Steel, O.D pipe conduit clamp, Electro-plated zinc

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
.0994 in
Product Length Depth:
5.984 in
Product Weight:
.55 lb
Product Width:
1.25 in
Department:
Electrical
Product Group:
Conduit & Fittings
Product Subgroup:
Conduit Accessories
Product Type:
O.D pipe conduit clamp
Product Details:
O.D pipe conduit clamp
Product Material:
Steel

B-LINE B2052PAZN – Frequently Asked Questions

1) What is the Eaton B-Line B2052PAZN used for?
The B2052PAZN is an O.D. pipe conduit clamp from the Eaton B-Line strut pipe clamp line. It wraps the outside diameter of pipe or conduit and fastens it to strut channel, so the run is held off the structure and supported along its length. Body is steel with an electro-plated zinc finish for indoor, dry service.
2) Do I need strut channel to install the B2052PAZN, or can it mount straight to a wall?
It is a strut pipe clamp, so it is built to fasten into channel. Plan on a run of strut plus the channel nuts and bolts to secure it, since those fasteners are ordered separately from the clamp itself. If you are anchoring directly to masonry or steel with no channel, a one hole or two hole strap is the simpler part.
3) Can I use the B-Line B2052PAZN pipe clamp outdoors or in a wet area?
Stick to dry, indoor runs. The clamp is steel with an electro-plated zinc finish, which is a light coating meant for protected interior environments. For exterior, damp, or corrosive locations you want a hot dip galvanized or stainless clamp instead.
4) What size is the B-Line B2052PAZN clamp?
Dimensions are 5.984 x 1.25 x .0994 inches (length, width, height as published), and it weighs .55 lb. The .0994 inch figure is the material thickness of the steel strap, which is why the part is long and flat rather than bulky. Lay the 5.984 inch dimension against your pipe circumference to confirm the wrap suits your line size.
5) Will the B2052PAZN clamp hold rigid conduit as well as pipe?
Yes. It is an outside diameter clamp, so it works on any round conduit or pipe whose O.D. matches the clamp size, rigid metal conduit and IMC included. Size by measured outside diameter, not by trade name, since copper tube and steel pipe of the same nominal size do not share an O.D.
6) Is the B-Line B2052PAZN clamp UL listed or carry any certification?
No certification is carried on the B2052PAZN clamp; the certification field reads Not Applicable. If your specification calls for a listed support component, confirm the requirement with your inspector before you commit the run.
How fast can I get the B-LINE B2052PAZN delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the B-LINE B2052PAZN come with a warranty?
Absolutely. The B-LINE B2052PAZN is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the B-LINE B2052PAZN?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
