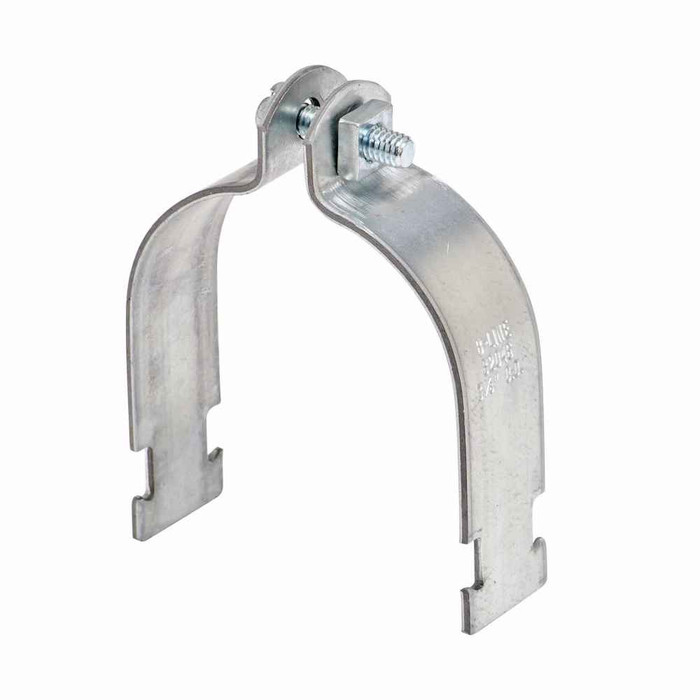

B-Line Eaton series strut pipe...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$4,284.00
B-Line Eaton series strut pipe clamps and accessories, .0994" height, 6.281" length, 1.25" width, 1000 lbs, Steel, Pre-assembled combination recess sq

B-Line Eaton series strut pipe clamps and accessories, .0994" height, 6.281" length, 1.25" width, 1000 lbs, Steel, Pre-assembled combination recess sq

(No reviews yet) Write a Review

Model: B2054PAZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,284.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut pipe clamps and accessories, .0994" height, 6.281" length, 1.25" width, 1000 lbs, Steel, Pre-assembled combination recess square nut, O.D pipe conduit clamp, Electro-plated zinc, 5/8 -18

Manufacturer Resources

Product Specs

Bolt Pin Size:
5/8"-18
Certifications:
Not Applicable
Load Capacity:
1000 lbs
Product Height:
.0994 in
Product Length Depth:
6.281 in
Product Weight:
.61 lb
Product Width:
1.25 in
Special Features:
Pre-assembled combination recess square nut
Department:
Electrical
Product Group:
Conduit & Fittings
Product Subgroup:
Conduit Accessories
Product Type:
O.D pipe conduit clamp
Product Details:
O.D pipe conduit clamp
Product Material:
Steel

B-LINE B2054PAZN – Frequently Asked Questions

1) What bolt size does this B-Line strut clamp use?
It takes a 5/8-18 bolt. That is a fine thread, so a coarse 5/8-11 rod or bolt will not thread into it. Order 5/8-18 hardware for any replacement fastener.
2) Does the B2054PAZN clamp come with the strut nut, or do I order that separately?
The strut nut comes with it. The B2054PAZN ships as a pre-assembled combination recess square nut assembly, so the clamp, nut, and hardware arrive as one piece ready to drop into the channel. No separate channel nut purchase needed.
3) What size pipe does the B-Line B2054PAZN clamp fit?
It is an O.D. pipe conduit clamp, meaning it is sized to the outside diameter of the pipe or conduit rather than the nominal trade size. The clamp body measures 6.281 in long by 1.25 in wide, so match the O.D. of your run to the clamp opening rather than assuming a trade size will drop in.
4) Is this B-Line pipe clamp suitable for a damp or outdoor location?
It is steel with an electro-plated zinc finish. Electro-plated zinc is a light coating meant for dry indoor and protected interior use; for exposed exterior, wash-down, or corrosive areas you want a hot-dip galvanized or stainless clamp instead.
5) What is the part number and weight for ordering B-Line strut pipe clamps in bulk?
The manufacturer part number is B2054PAZN from Eaton B-Line. Each assembly weighs .61 lb, which is what you need for freight math on a pallet of hangers.
