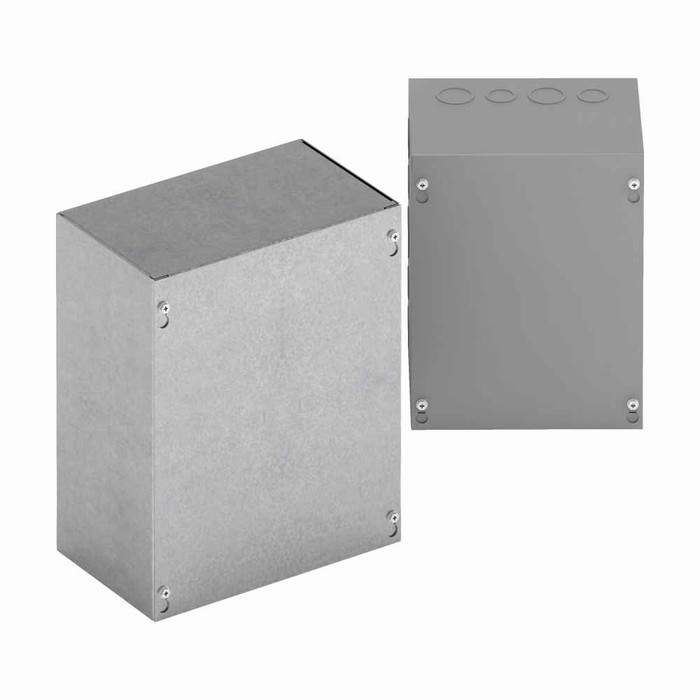

B-Line Eaton series Type 1 jun...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$412.77
B-Line Eaton series Type 1 junction boxes, 16" height, 4" length, 12" width, 1, Screw cover, SCGV enclosure, Surface mounted, Small single door, 7 kn

B-Line Eaton series Type 1 junction boxes, 16" height, 4" length, 12" width, 1, Screw cover, SCGV enclosure, Surface mounted, Small single door, 7 kn

(No reviews yet) Write a Review

Model: 16124 SCGV
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$412.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 1 junction boxes, 16" height, 4" length, 12" width, NEMA 1, Screw cover, SCGV enclosure, Surface mounted, Small single door, 7 knockouts each side,5 top and bottom, Thru holes, Galvanized steel

Manufacturer Resources

Product Specs

Bottom Knockouts:
7
Certifications:
UL 50
Country Of Origin:
United States
Cover Type:
Screw
Finish Color:
Unfinished
Mounting Hole Details:
Thru holes
Mounting Method:
Surface
Nema Rating:
1
Product Height:
16 in
Product Length Depth:
4 in
Product Weight:
10.4 lb
Product Width:
12 in
Side Knockouts:
7
Special Features:
Keyhole slots on cover, plated screws
Top Knockouts:
7
Wall Thickness:
16 gauge
Department:
Electrical
Product Model:
SCGV enclosure
Product Color:
Grey
Product Style:
Small single door
Product Material:
Galvanized steel

B-LINE 16124 SCGV – Frequently Asked Questions

1) Can a NEMA 1 screw cover junction box like the B-Line 16124 SCGV be used outdoors or in a washdown area?
No. The 16124 SCGV carries a NEMA Type 1 rating, which is indoor use only, for protection against incidental contact and falling dirt. It does not seal against rain, hose-down, dust or oil. For an outdoor or wet location you need a Type 3R, 4 or 4X enclosure instead.
2) How many knockouts does the 16124 SCGV have and where are they?
Knockouts run 7 on each side, 7 on top and 7 on the bottom, so you can bring conduit in from four directions without drilling the box. The cover itself is solid and screw-fastened, so all entries come through the body.
3) How does this junction box mount to the wall, and does it need a separate back panel or bracket?
Mounting is surface, through thru holes in the back of the enclosure, so it bolts or lags straight to the wall or to Unistrut with your own fasteners. No bracket kit is part of the enclosure. The cover also has keyhole slots, which lets you hang it on two screws while you drive the rest.
4) What are the box dimensions of the B-Line 16124 SCGV junction box?
It measures 16 inches high, 12 inches wide and 4 inches deep, so it fits a 16 x 12 inch surface footprint on the wall with a 4 inch standoff. That 4 inch depth is what decides whether your conductors and splices bend in comfortably, so check your largest cable bending radius against it before you commit.
5) Is a screw cover junction box the right choice, or should I use a hinged door enclosure?
A screw cover box like the 16124 SCGV suits a pull, splice or terminal point you rarely open, since the cover comes off completely with plated screws. If a technician is opening it regularly for metering or troubleshooting, a hinged-cover enclosure is easier to live with because the cover stays captive. For pull boxes and wire troughs, screw cover is the normal spec.
6) What gauge steel is the 16124 SCGV, and will it hold up in a mechanical room?
The body is 16 gauge galvanized steel, unfinished, grey in appearance. That is a standard commercial-duty wall thickness for indoor pull and junction boxes and it takes conduit loading at the knockouts without oil-canning. Because it is galvanized rather than painted, you can leave it as-is or field paint it to match adjacent equipment.
7) How heavy is this 16 x 12 x 4 junction box, and can one person hang it?
It weighs 10.4 lb empty, so a single installer can hold it against the wall and start a fastener, especially using the keyhole slots. Size your wall anchors for that plus the weight of the conduit runs landing on it.
