B-Line Eaton series Type 3/3R ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$414.70

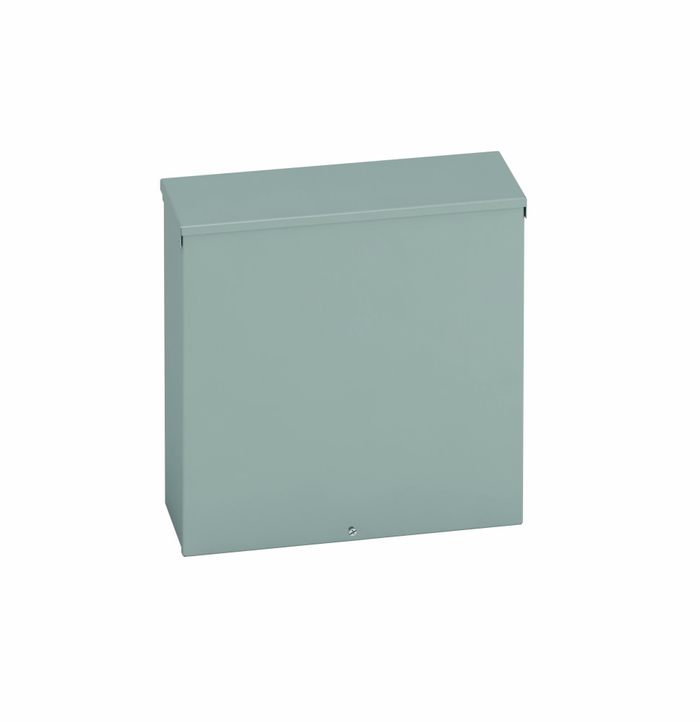

B-Line Eaton series Type 3/3R junction boxes, 10" height, 6" length, 10" width, 3R, Screw cover, RTSCGV NK enclosure, Surface mounted, Small single d

B-Line Eaton series Type 3/3R junction boxes, 10" height, 6" length, 10" width, 3R, Screw cover, RTSCGV NK enclosure, Surface mounted, Small single d

(No reviews yet) Write a Review

Model: 10106 RTSCGV NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$414.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 3/3R junction boxes, 10" height, 6" length, 10" width, NEMA 3R, Screw cover, RTSCGV NK enclosure, Surface mounted, Small single door, No knockout, Embossed thru holes, Galvanized steel

Manufacturer Resources

Product Specs

Certifications:
UL 50
Country Of Origin:
United States
Cover Type:
Screw
Finish Color:
Unfinished
Mounting Hole Details:
Embossed thru holes
Mounting Method:
Surface
Nema Rating:
3R
Product Height:
10 in
Product Length Depth:
6 in
Product Weight:
7.8 lb
Product Width:
10 in
Special Features:
Rainhood,embossed mounting provisions,platedscrews
Wall Thickness:
16 gauge
Department:
Electrical
Product Model:
RTSCGV NK enclosure
Product Color:
Grey
Product Style:
Small single door
Product Material:
Galvanized steel

B-LINE 10106 RTSCGV NK – Frequently Asked Questions

1) Does this B-Line 3R junction box come with knockouts for conduit?
No. The 10106 RTSCGV NK is a no-knockout box, so you punch or hole-saw your own conduit entries where you want them. That is the usual choice for a 3R outdoor box, since you control where the penetrations land relative to the rainhood and keep unused openings out of the box entirely. Budget for a knockout punch or step bit in 16 gauge steel and for proper raintight fittings at each entry.
2) Is the B-Line 10106 RTSCGV NK painted, and will it rust outdoors?
It ships unfinished, grey galvanized steel, with no paint topcoat. The galvanizing is the corrosion protection. If you cut conduit entries, the bare edges are unprotected, so touch them up with a cold galvanizing compound. For coastal or chemical exposure where galvanized steel will not hold up, specify a stainless or non-metallic 3R enclosure instead.
3) How does the B-Line 10106 RTSCGV NK enclosure mount to a wall?
Surface mount, using embossed thru holes formed into the back of the box. The embossing keeps the fastener heads off the mounting surface and the holes are already there, so no drilling through the enclosure and no added penetrations to seal. Anchors and screws for your wall type are not part of the box.
4) Screw cover or hinged door enclosure, which should I use for an outdoor junction point?
A screw cover box like the 10106 RTSCGV NK suits junction and pull points you open rarely: the cover lifts off completely with plated screws, which gives full access to the interior for pulling and splicing. If the enclosure holds devices someone opens routinely, such as a disconnect or controls a tech services weekly, a hinged door version is the easier daily choice. This one is a small single door style intended as a rain resistant junction box.
5) Is this B-Line enclosure UL listed and made in the USA?
The 10106 RTSCGV NK is listed to UL 50, the standard for enclosures for electrical equipment, and its country of origin is the US. Those two points are what most institutional and government specs ask for on a junction box submittal, alongside the NEMA 3R rating.
6) How heavy gauge is the steel on this B-Line 3R box?
16 gauge steel throughout. That is a common commercial wall thickness for a box this size, stiff enough that the 10 x 10 inch face will not oil-can when you tighten the cover screws, and heavy enough to hold thread in a punched entry with a locknut. Worth knowing before you order a punch set, since 16 gauge needs a proper knockout punch rather than a hand tool.
