B-Line Eaton series Type 3/3R ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,590.26

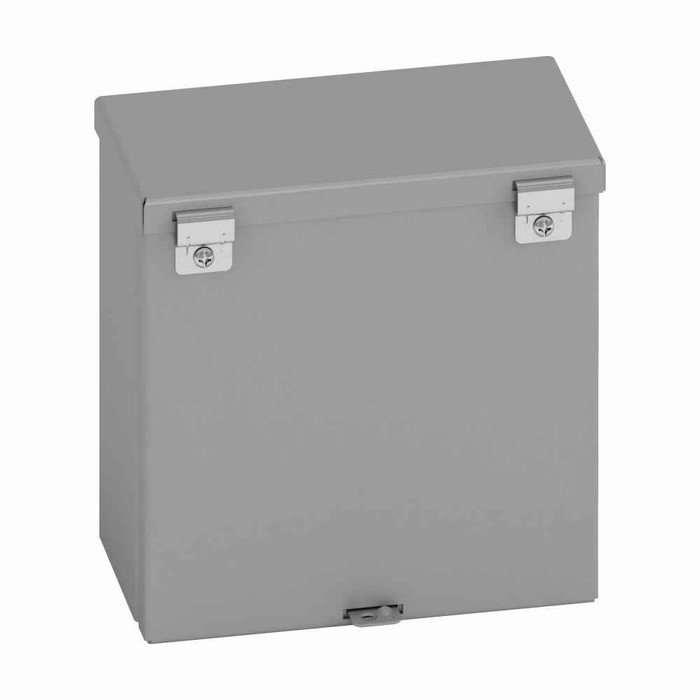

B-Line Eaton series Type 3/3R junction boxes, 36" height, 10" length, 24" width, 3R, Hinged cover, RTHC NK enclosure, Surface mounted, Medium single

B-Line Eaton series Type 3/3R junction boxes, 36" height, 10" length, 24" width, 3R, Hinged cover, RTHC NK enclosure, Surface mounted, Medium single

(No reviews yet) Write a Review

Model: 362410 RTHC NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,590.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 3/3R junction boxes, 36" height, 10" length, 24" width, NEMA 3R, Hinged cover, RTHC NK enclosure, Surface mounted, Medium single door, No knockout, Embossed thru holes, Carbon steel

Manufacturer Resources

Product Specs

Certifications:
UL 50
Closure Type:
Formed top hinge
Country Of Origin:
United States
Cover Type:
Hinged
Finish Color:
Painted
Locking Provisions:
Padlock provision
Mounting Hole Details:
Embossed thru holes
Mounting Method:
Surface
Nema Rating:
3R
Product Height:
36 in
Product Length Depth:
10 in
Product Weight:
66 lb
Product Width:
24 in
Special Features:
Rain hood, removable cover
Wall Thickness:
14 gauge
Department:
Electrical
Product Model:
RTHC NK enclosure
Product Color:
ANSI 61 gray
Product Style:
Medium single door
Product Material:
Carbon steel

B-LINE 362410 RTHC NK – Frequently Asked Questions

1) Can the B-Line 362410 RTHC NK enclosure be mounted outdoors?
Yes. The 362410 RTHC NK carries a NEMA 3R rating, which covers outdoor use against falling rain, sleet and ice formation. It also ships with a rain hood as a standard feature and is painted ANSI 61 gray carbon steel. It is not a watertight or washdown enclosure, so keep it off any location subject to direct hose spray.
2) What are the actual box dimensions on the B-Line 362410 junction box?
It measures 36 inches high, 24 inches wide and 10 inches deep. Plan wall space for the door swing on the hinged cover plus clearance for the rain hood at the top.
3) Does this B-Line enclosure come with knockouts for conduit?
No. The RTHC NK is a no-knockout box, so the sheet steel is blank and you punch your own conduit entries where the job needs them. Budget for hole saws or a knockout punch set rated for 14 gauge steel, and keep entries on the bottom or sides to preserve the 3R rating.
4) Can the cover on this B-Line junction box be locked?
Yes, it has a padlock provision, so a standard shackle padlock secures the door. The cover is hinged on a formed top hinge and is also removable if you need the opening completely clear while pulling wire.
5) Does a back panel or inner mounting plate come with this B-Line box?
The 362410 RTHC NK is supplied as an enclosure only, a 36 x 24 x 10 inch carbon steel body with a hinged cover and rain hood. Any inner panel, terminal strips, or conduit fittings are separate items on the order.
6) What exact part number do I order for the 36x24x10 B-Line 3R hinged cover box?
Order Eaton B-Line part 362410 RTHC NK. The number reads out as the size, 36 high by 24 wide by 10 deep, with RTHC for the hinged cover style and NK for no knockouts. It is made in the US.
