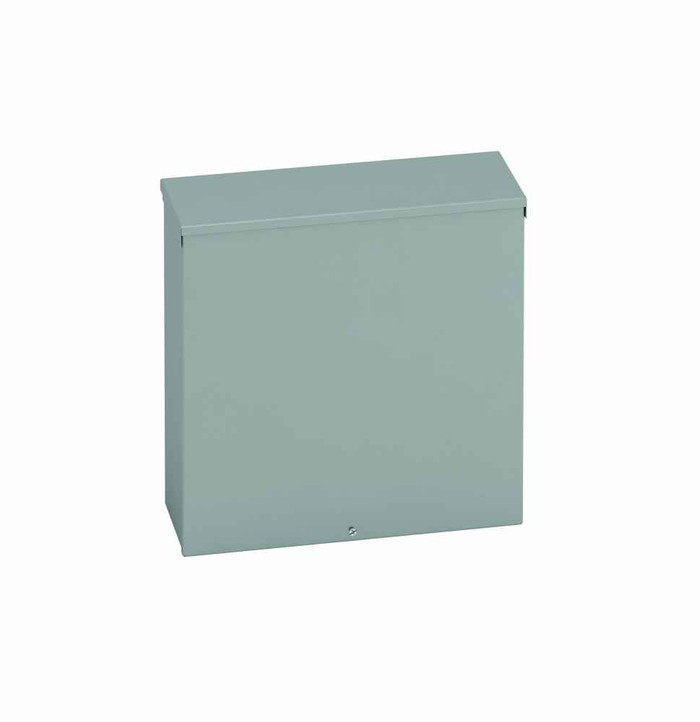

B-Line Eaton series Type 3/3R junction boxes, 36" height, 12" length, 24" width, 3R, Screw cover, RTSC enclosure, Surface mounted, Medium single door

Yes. The 362412 RTSC carries a NEMA Type 3R rating and is built for outdoor surface mounting, with a rain hood over the cover and plated screws to hold up in wet locations. Type 3R protects against falling rain, sleet and external ice formation, so it suits exterior walls, rooftops and equipment yards. It is not a washdown or hosedown enclosure.

36 inches high by 24 inches wide by 12 inches deep. That 12 inch depth is what lets you mount a subpanel or gutter taps inside without crowding the cover, and the 36 by 24 face gives room for pull and splice work on larger feeders.

There are 9 knockouts, all in the bottom of the box. Nothing is pre-punched in the sides, back or top, which is normal for a 3R enclosure since top penetrations would defeat the rain rating. If you need side or back entries you will be punching them yourself in 14 gauge carbon steel.

It mounts on the surface using embossed thru holes in the back of the box. Embossed holes stand the box off slightly and keep the mounting fasteners from breaking the wet-location seal at the back panel. At 73.1 lb empty, plan anchors into structure or solid backing, not drywall alone, and get a second set of hands on it.

It is a screw cover, not a hinged door. The flanged cover lifts off completely once the plated screws are backed out. That means you need clear working room in front of the box and somewhere to set a cover this size down. If your crew needs frequent access to the box, a hinged-door style enclosure is the easier choice.

It is built to UL 50, the standard covering enclosures for electrical equipment. Together with the Type 3R rating that is normally what an inspector or a facility spec is looking for on an outdoor junction or pull box.

Painted 14 gauge carbon steel is the normal, lower-cost pick for general outdoor and damp indoor use, and the 3R rating plus the rain hood handles weather exposure. Where it is the wrong call is corrosive duty: coastal salt air, wastewater plants, chemical or food processing areas, where paint over carbon steel will eventually give up and a 304 or 316 stainless enclosure is the correct spec instead.

Order Eaton B-Line part number 362412 RTSC. The digits read as the dimensions, 36 high by 24 wide by 12 deep, and RTSC identifies the rain-tight screw cover style. It is made in the US.

Painted carbon steel in ANSI 61 Grey, the standard light grey used across most switchgear, panelboards and control enclosures, so it lines up visually with the rest of a typical electrical room or exterior equipment wall.
